Umiak V

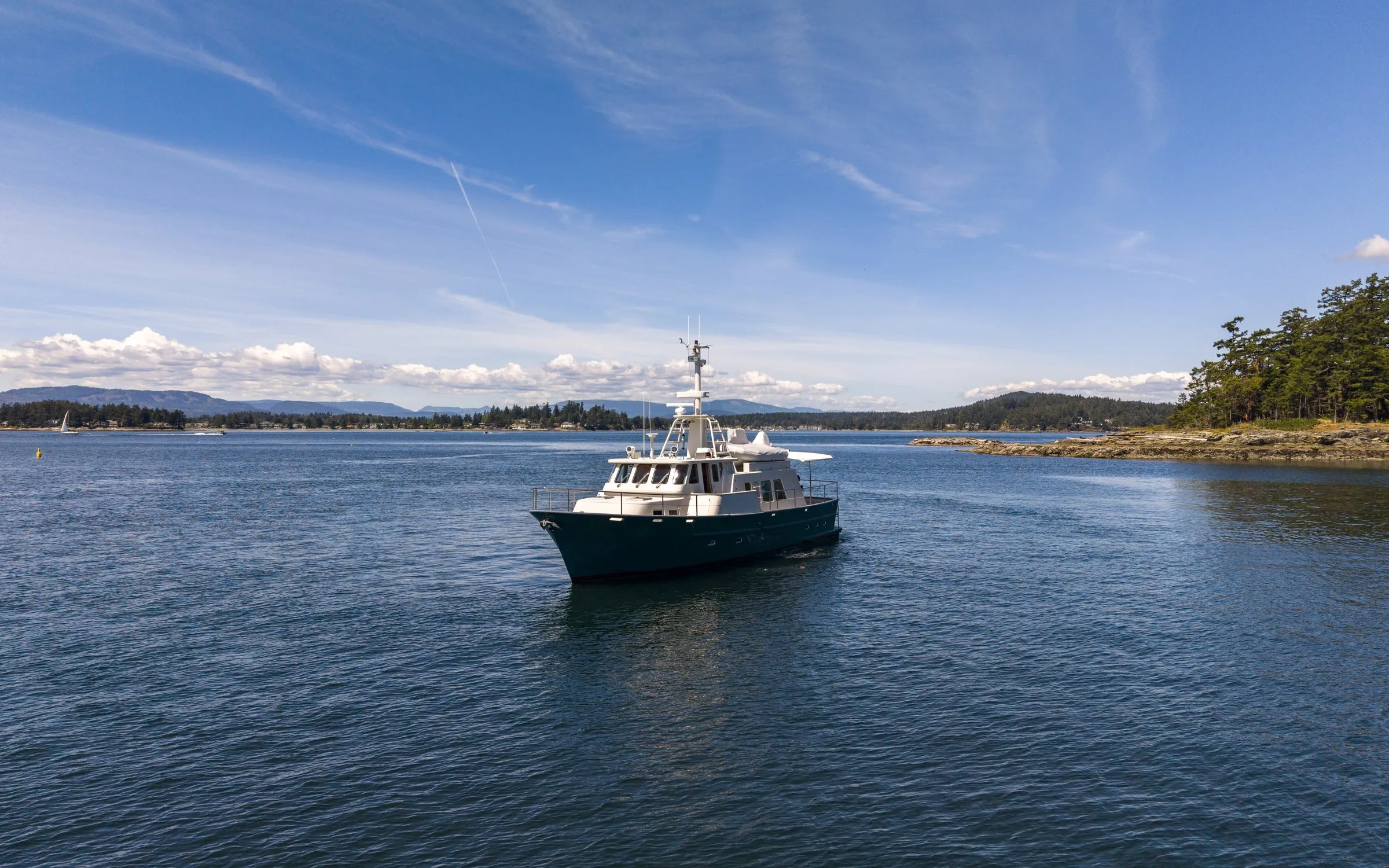

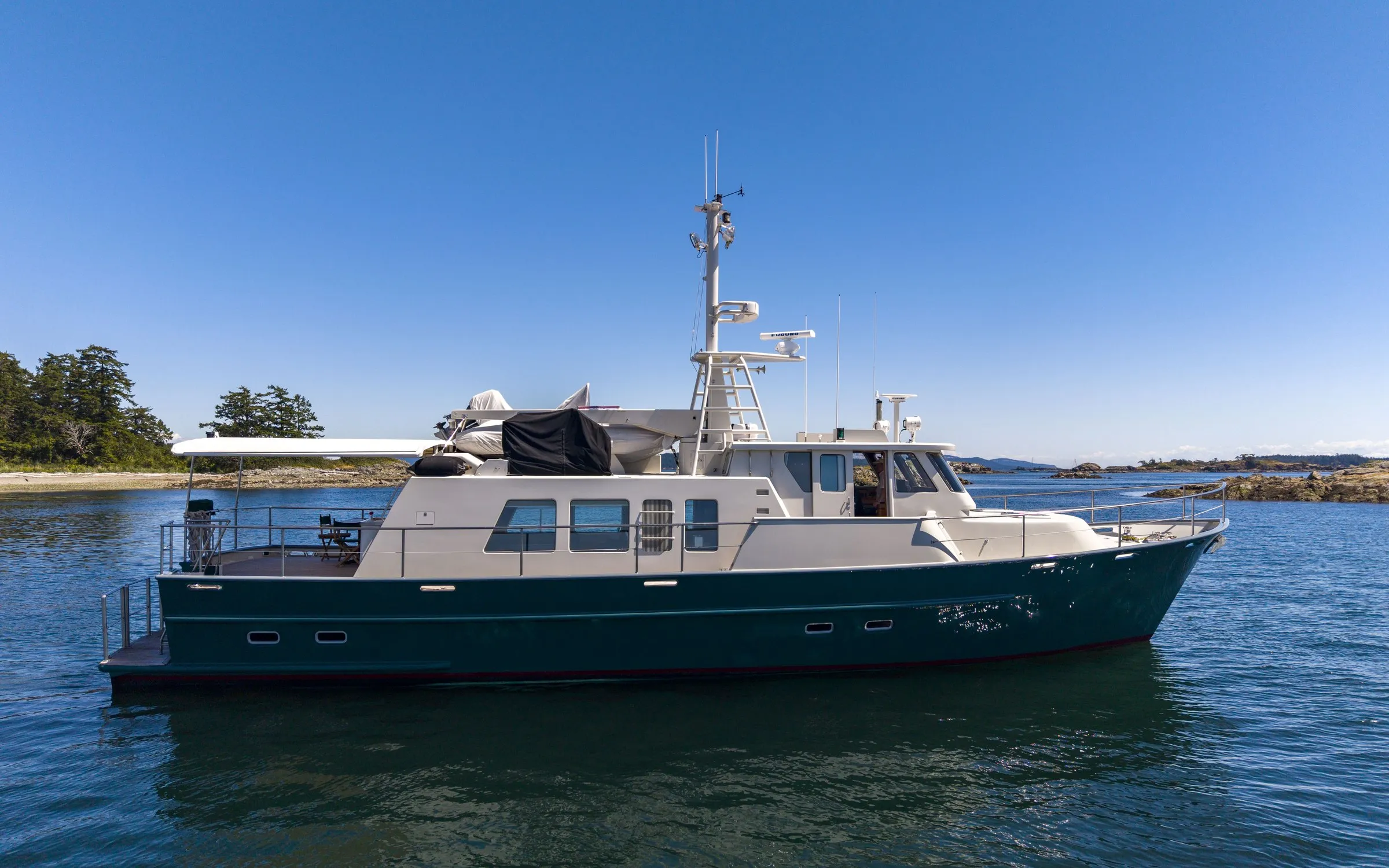

A 2003 Philbrook’s-built 65′ patrol yacht on Wm. Garden lines, certified to Lloyd’s Register, and voyaging to Alaska every year since she was launched.

For sale

US$1,900,000

Lying Sidney, BC — boathouse available separately

Year
2003
LOA
65′
Beam
18′ 2″
Draft
6′
Engines
2 × Detroit Series 60, 700 hp
Cruise
12–16 kts
Enquire about Umiak V
Umiak V — photograph 1 of 49Umiak V — photograph 2 of 49Umiak V — photograph 3 of 49Umiak V — photograph 4 of 49Umiak V — photograph 5 of 49Umiak V — photograph 6 of 49Umiak V — photograph 7 of 49Umiak V — photograph 8 of 49Umiak V — photograph 9 of 49Umiak V — photograph 10 of 49Umiak V — photograph 11 of 49Umiak V — photograph 12 of 49Umiak V — photograph 13 of 49Umiak V — photograph 14 of 49Umiak V — photograph 15 of 49Umiak V — photograph 16 of 49Umiak V — photograph 17 of 49Umiak V — photograph 18 of 49Umiak V — photograph 19 of 49Umiak V — photograph 20 of 49Umiak V — photograph 21 of 49Umiak V — photograph 22 of 49Umiak V — photograph 23 of 49Umiak V — photograph 24 of 49Umiak V — photograph 25 of 49Umiak V — photograph 26 of 49Umiak V — photograph 27 of 49Umiak V — photograph 28 of 49Umiak V — photograph 29 of 49Umiak V — photograph 30 of 49Umiak V — photograph 31 of 49Umiak V — photograph 32 of 49Umiak V — photograph 33 of 49Umiak V — photograph 34 of 49Umiak V — photograph 35 of 49Umiak V — photograph 36 of 49Umiak V — photograph 37 of 49Umiak V — photograph 38 of 49Umiak V — photograph 39 of 49Umiak V — photograph 40 of 49Umiak V — photograph 41 of 49Umiak V — photograph 42 of 49Umiak V — photograph 43 of 49Umiak V — photograph 44 of 49Umiak V — photograph 45 of 49Umiak V — photograph 46 of 49Umiak V — photograph 47 of 49Umiak V — photograph 48 of 49Umiak V — photograph 49 of 49

Designed and built to the highest marine standards for all-weather cruising, Umiak V takes her lines from the Wm. Garden-designed Fisheries Patrol and Canadian Coast Guard vessels that have patrolled the British Columbia coast since the 1970s.

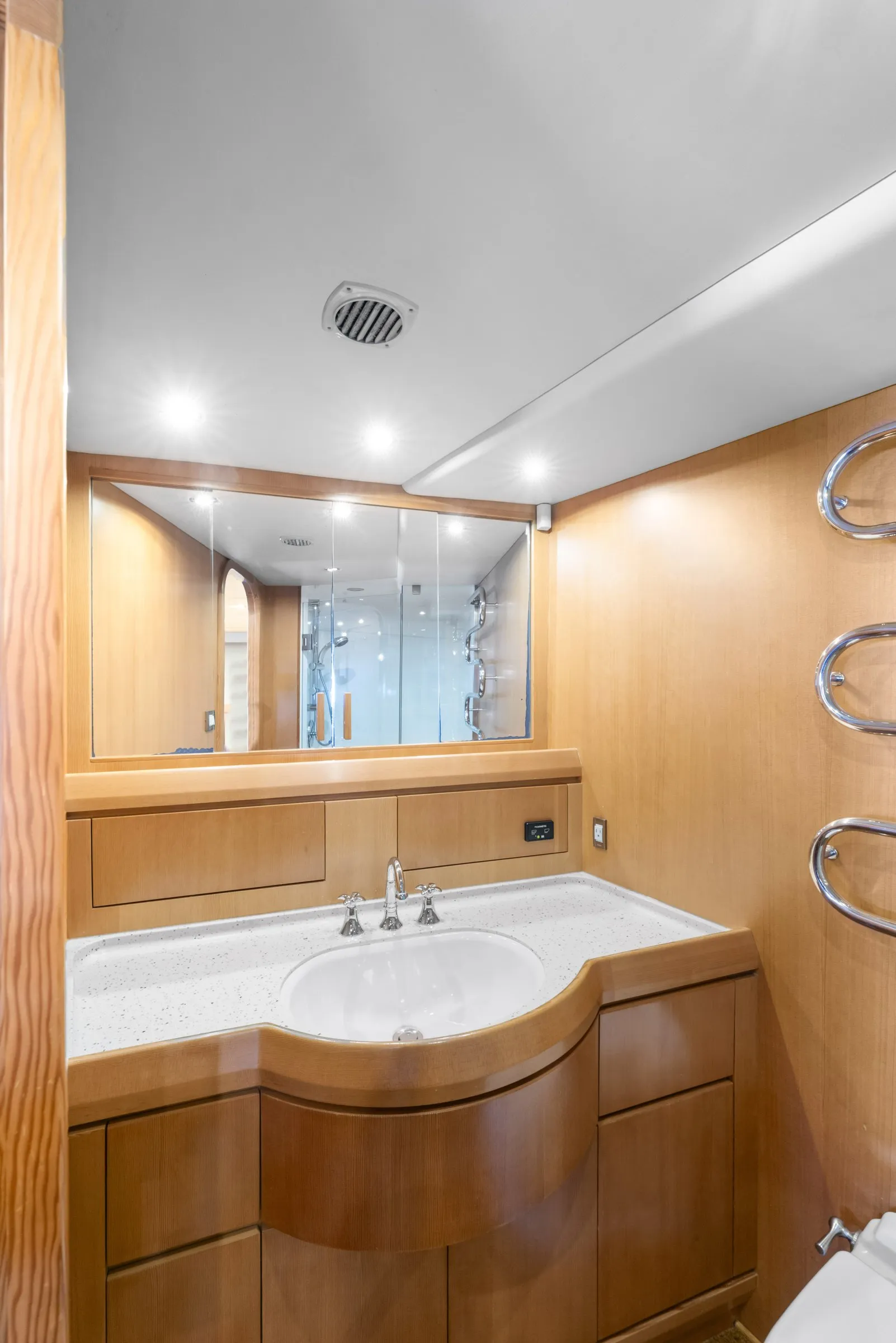

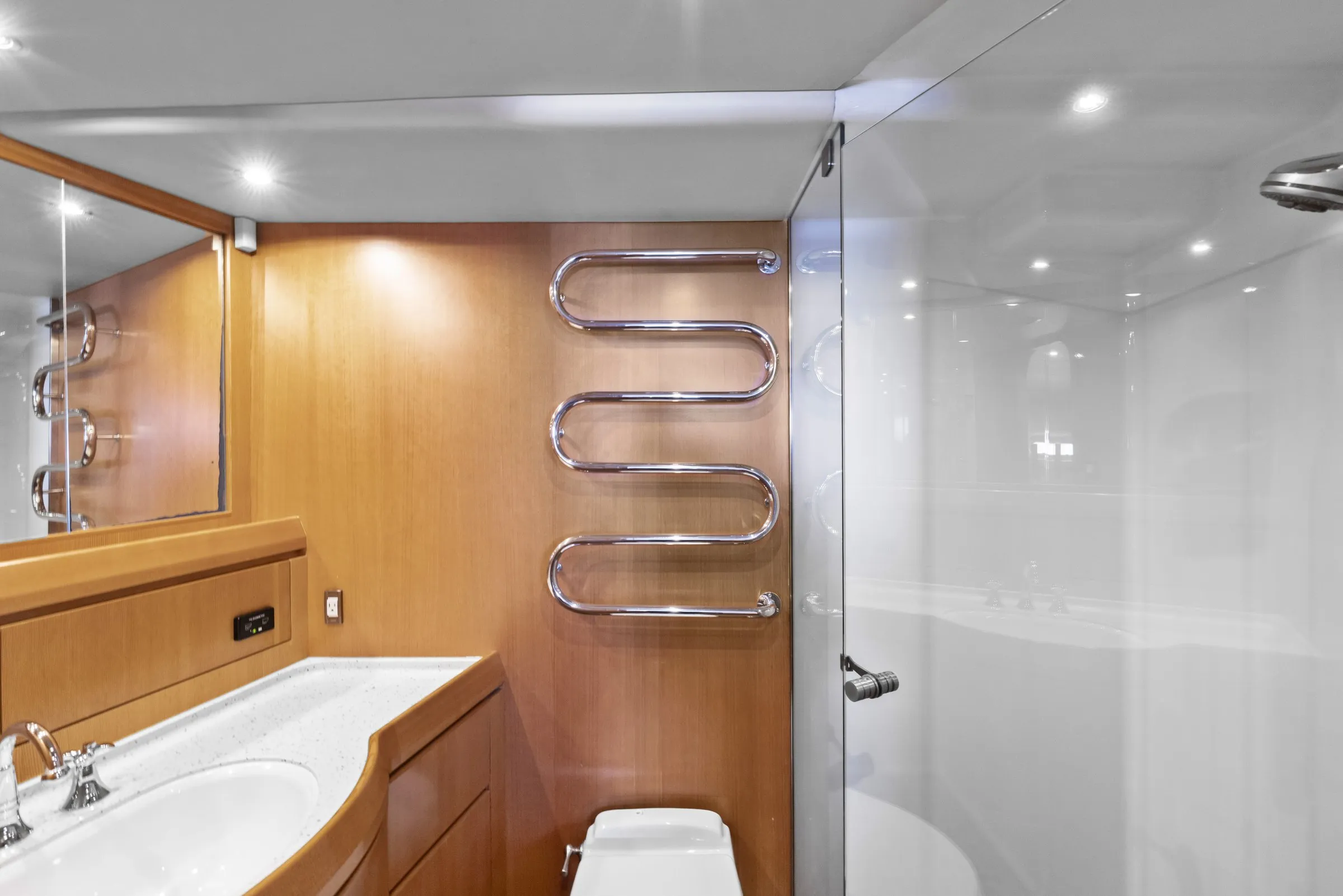

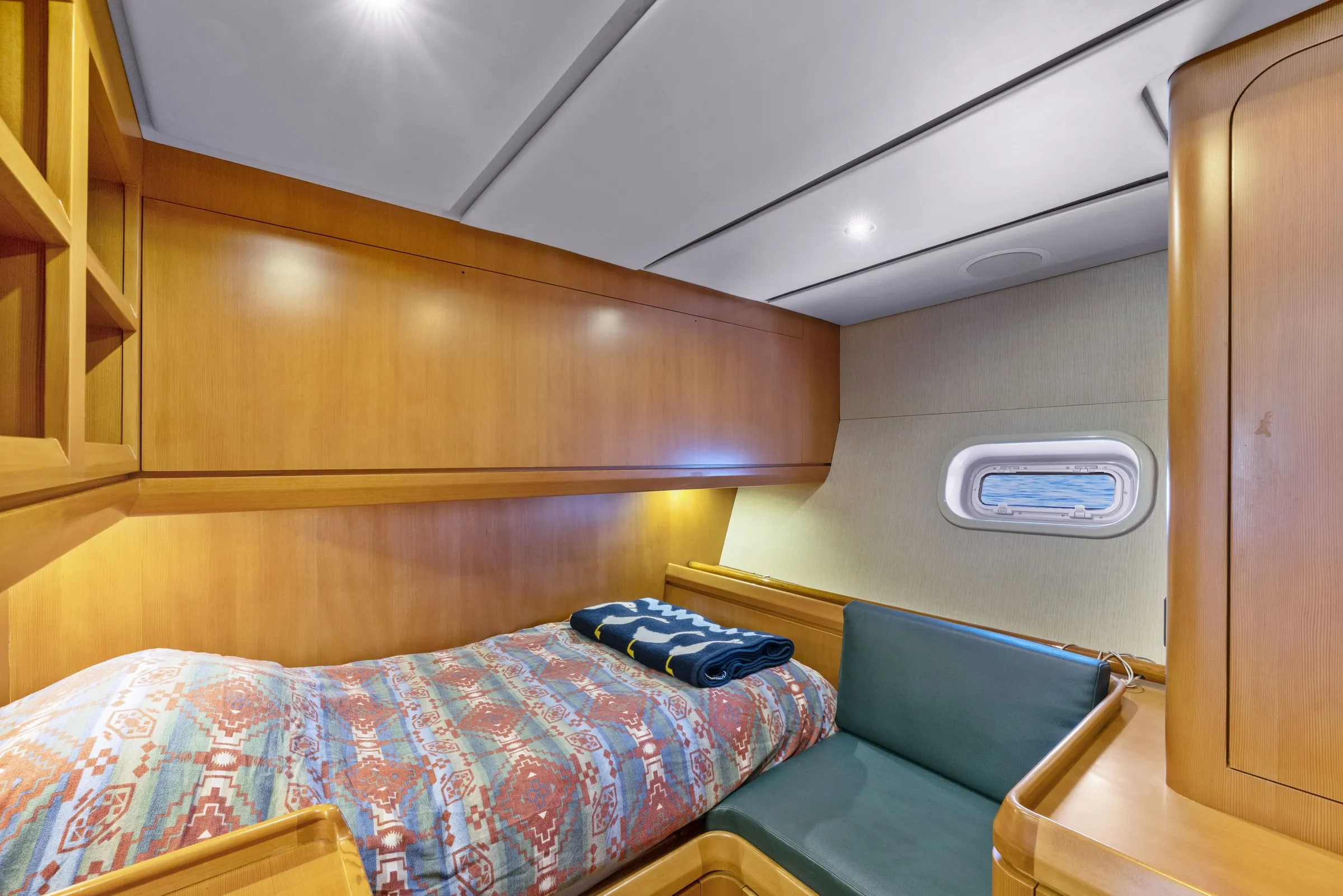

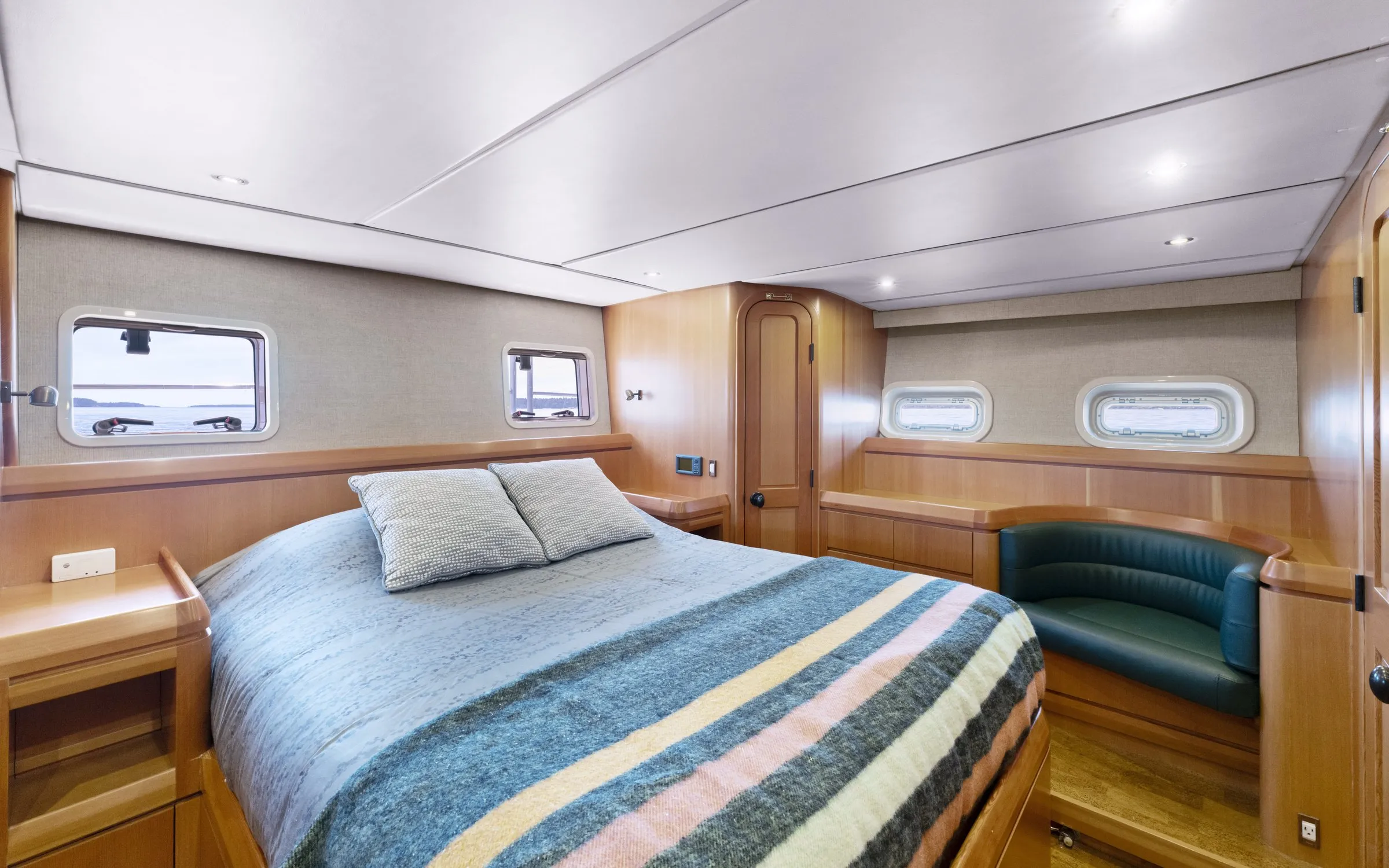

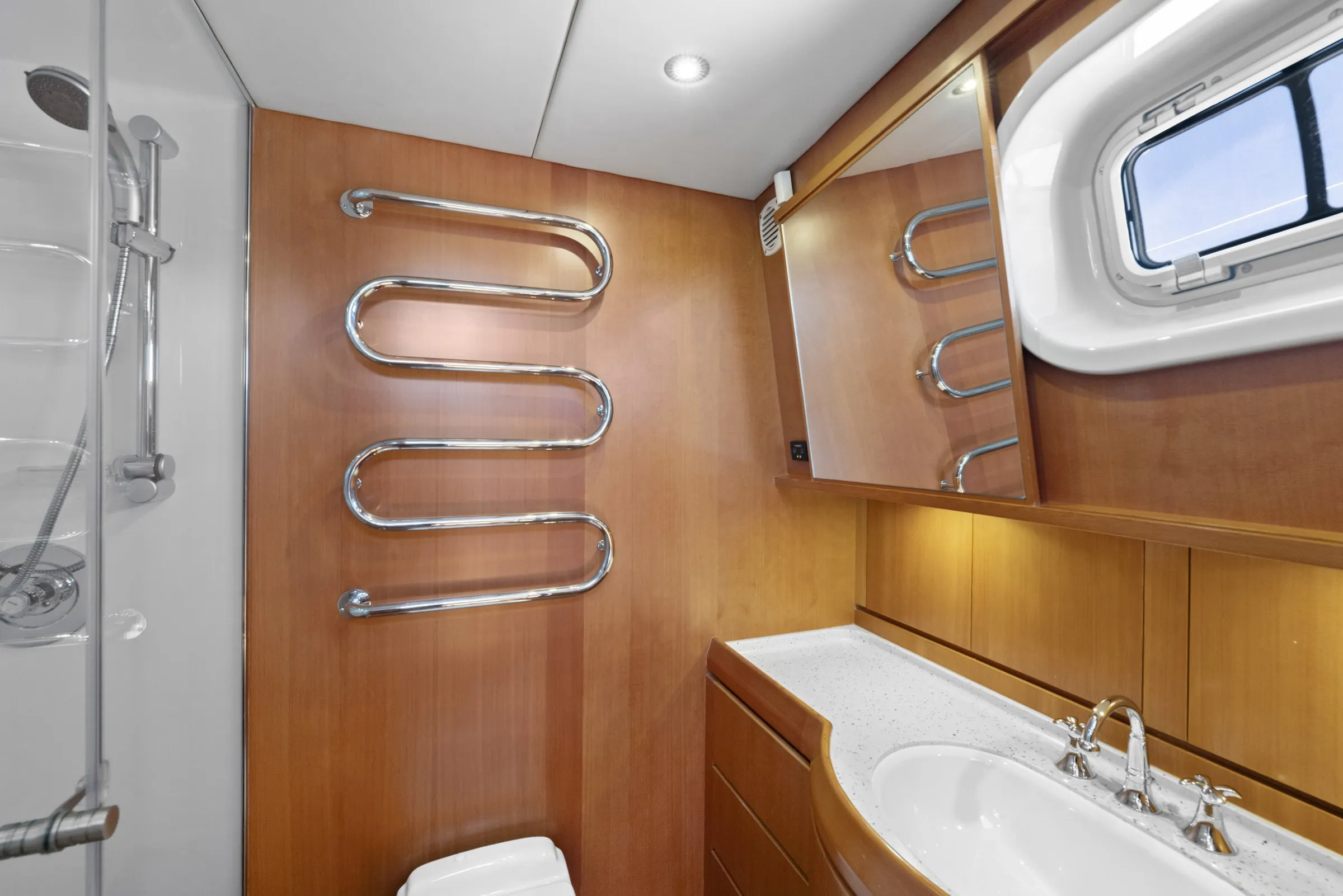

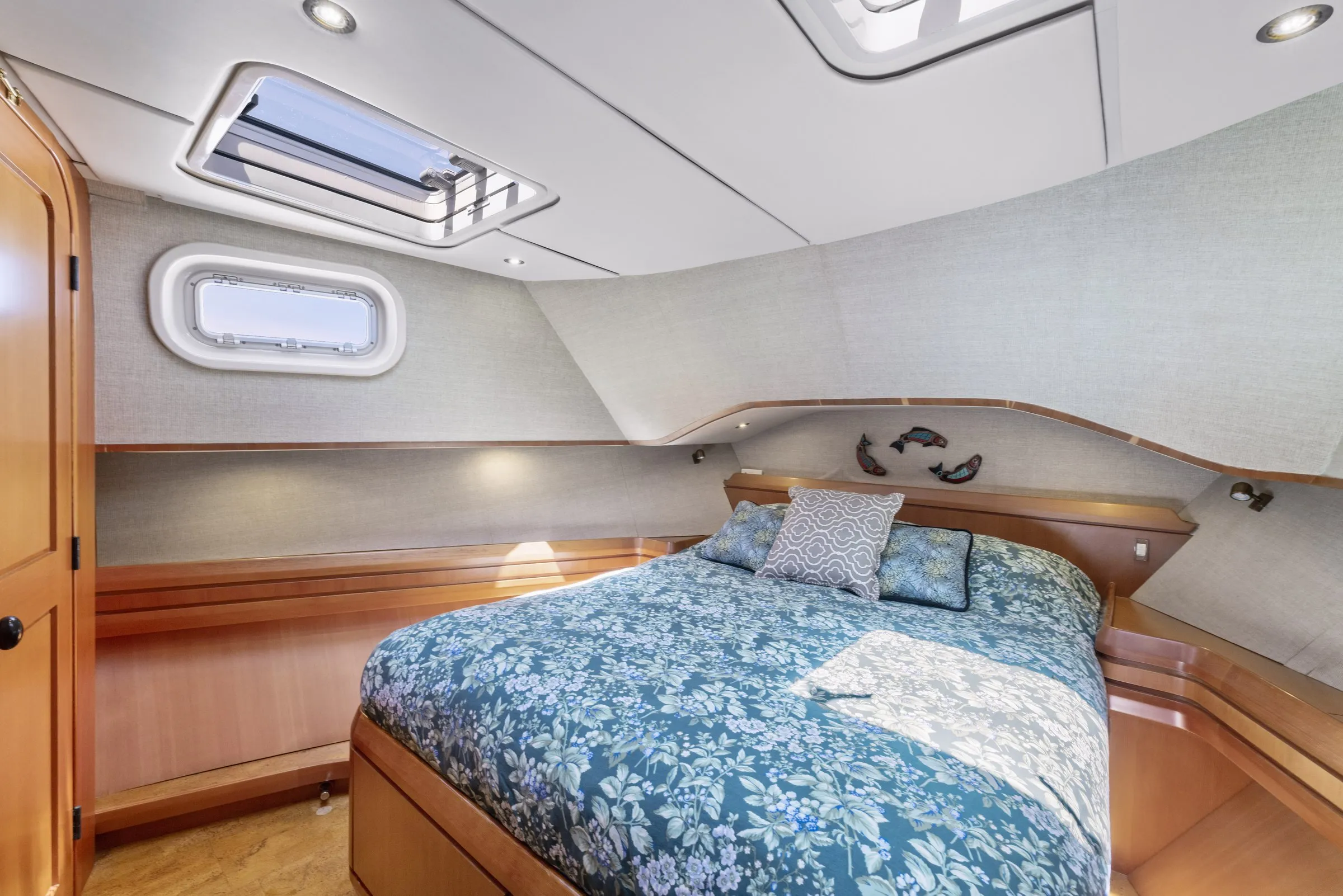

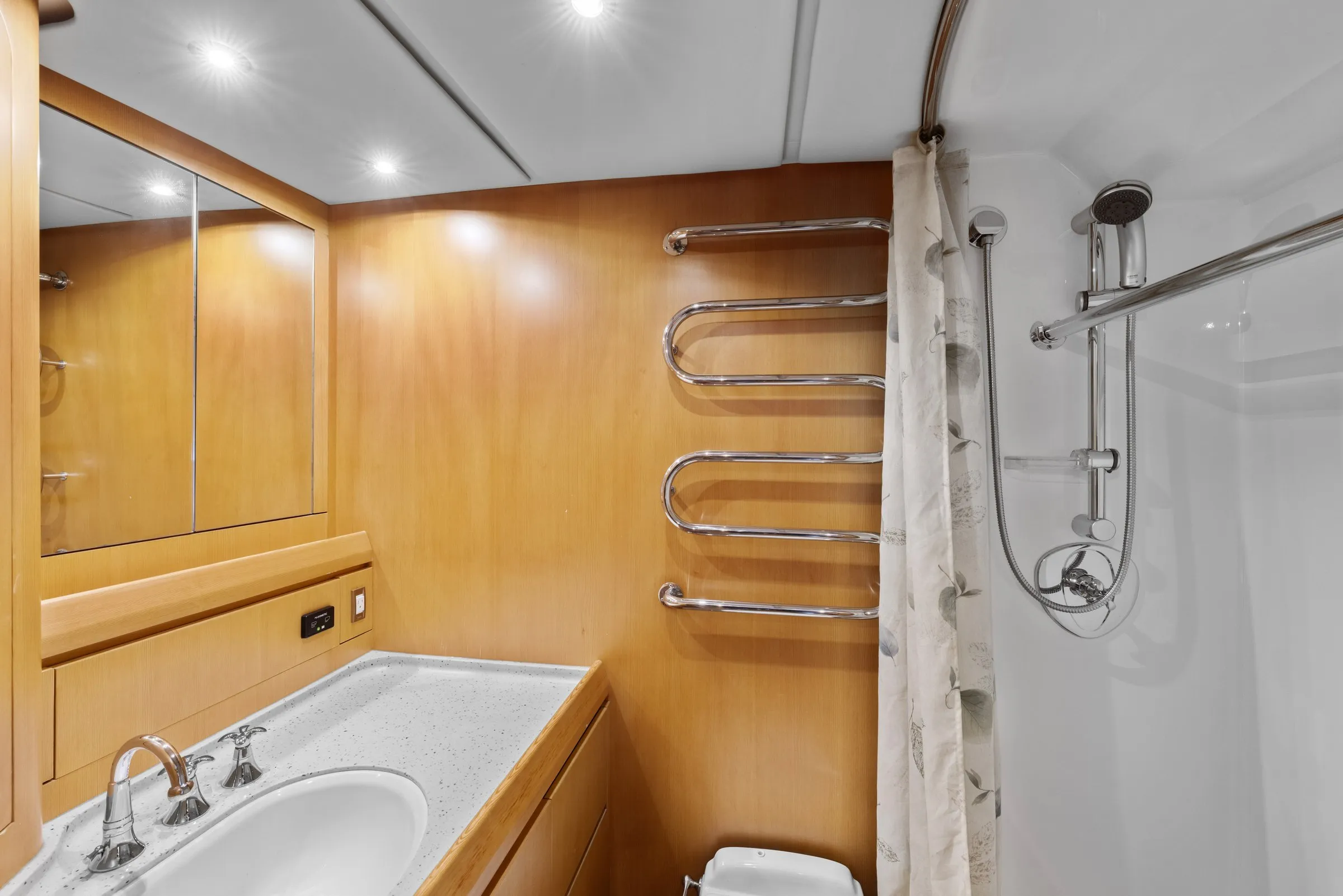

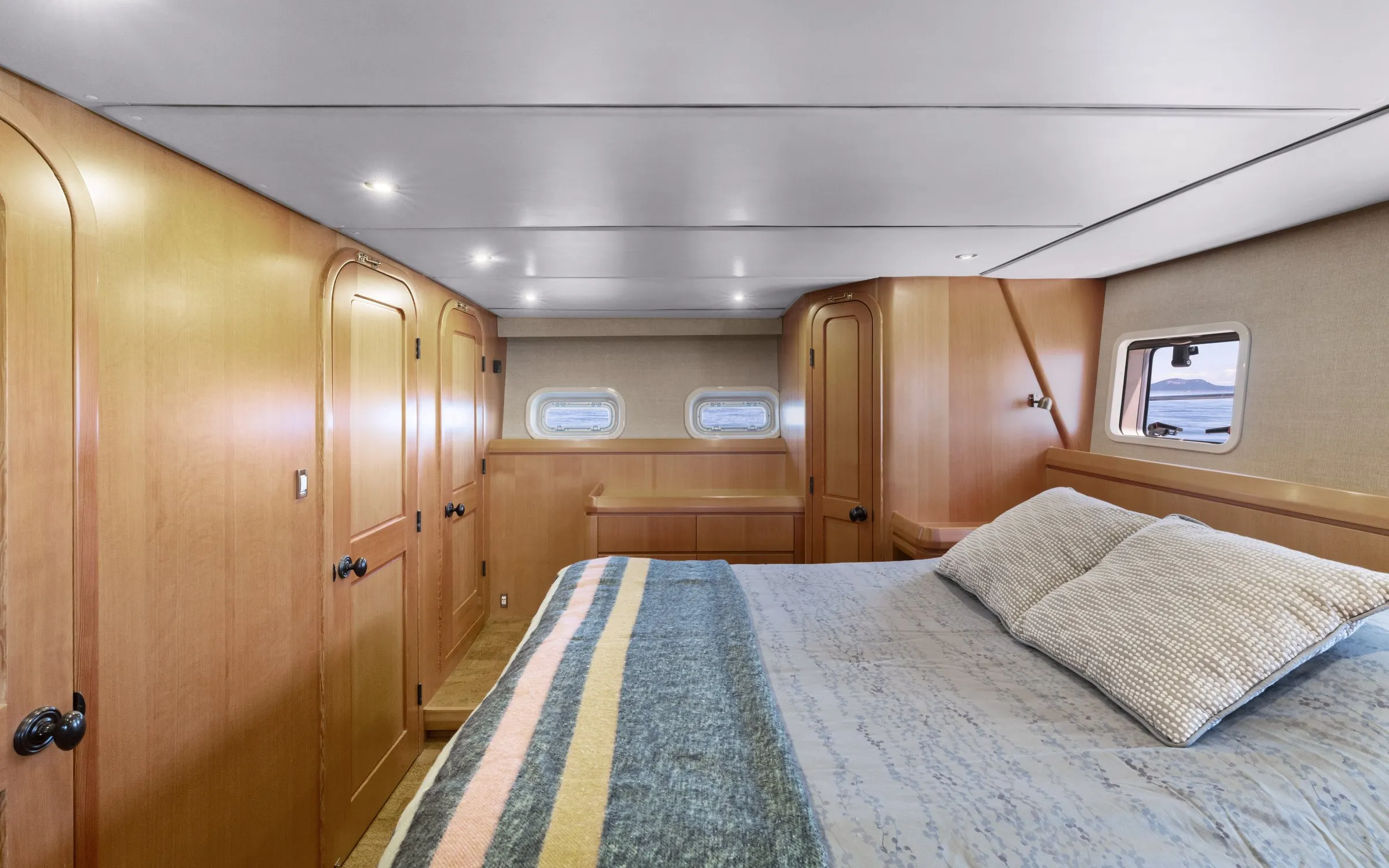

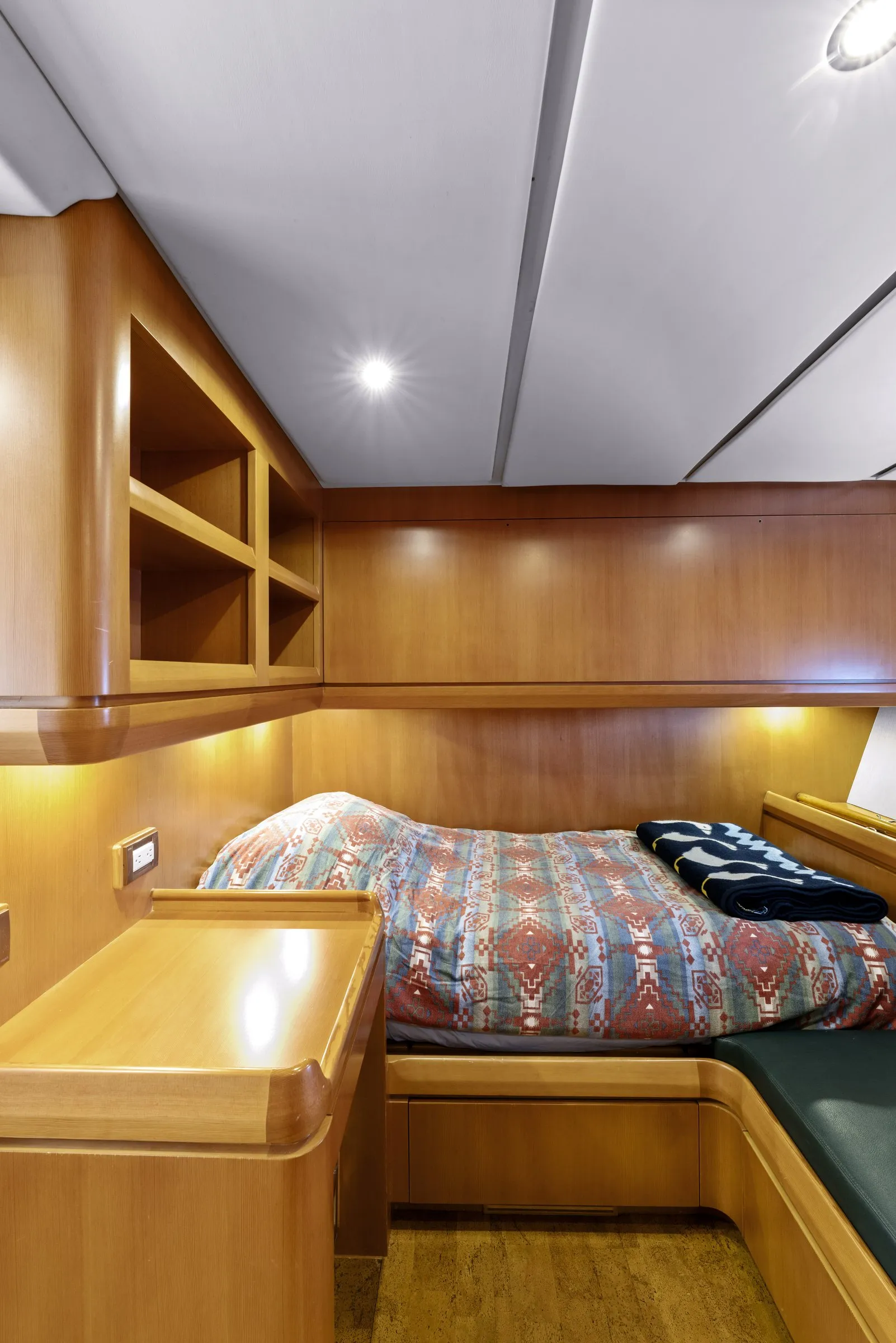

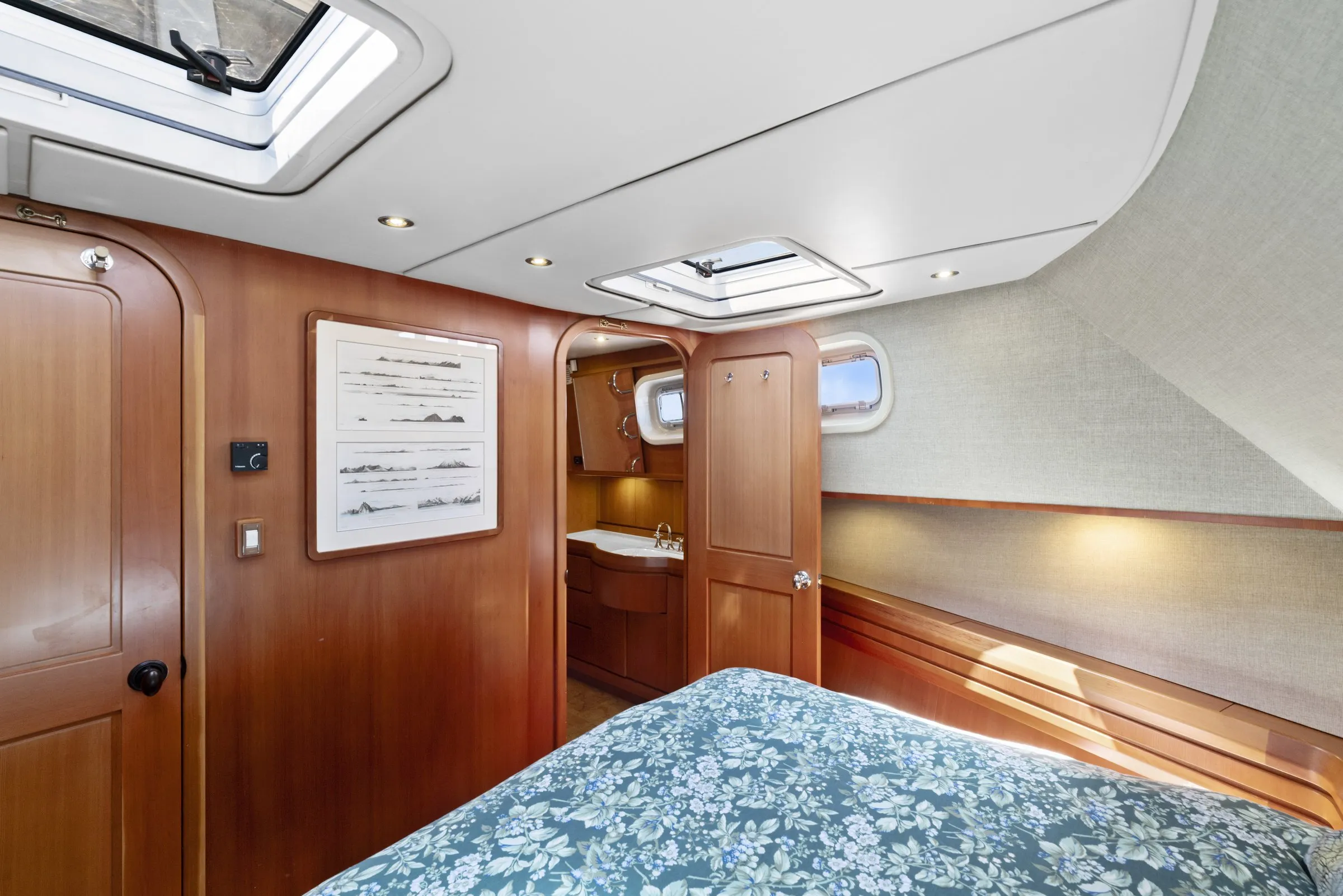

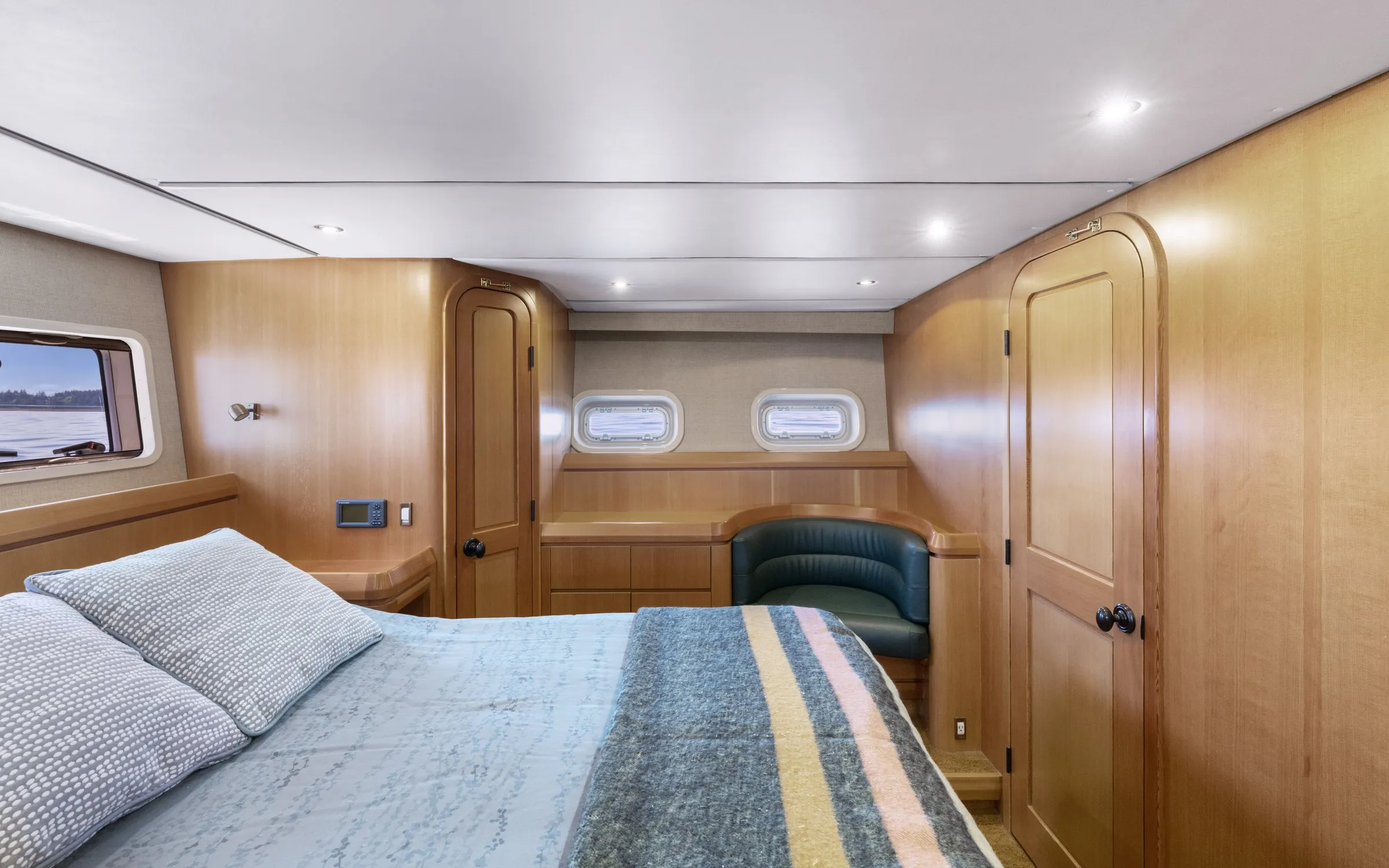

Constructed of heavy gauge aluminium, she is certified to Lloyd’s Register. Her hull and superstructure are heavily insulated for acoustic, thermal and fire control. Three double staterooms each have a dedicated head and shower, with an additional day head in the pilothouse.

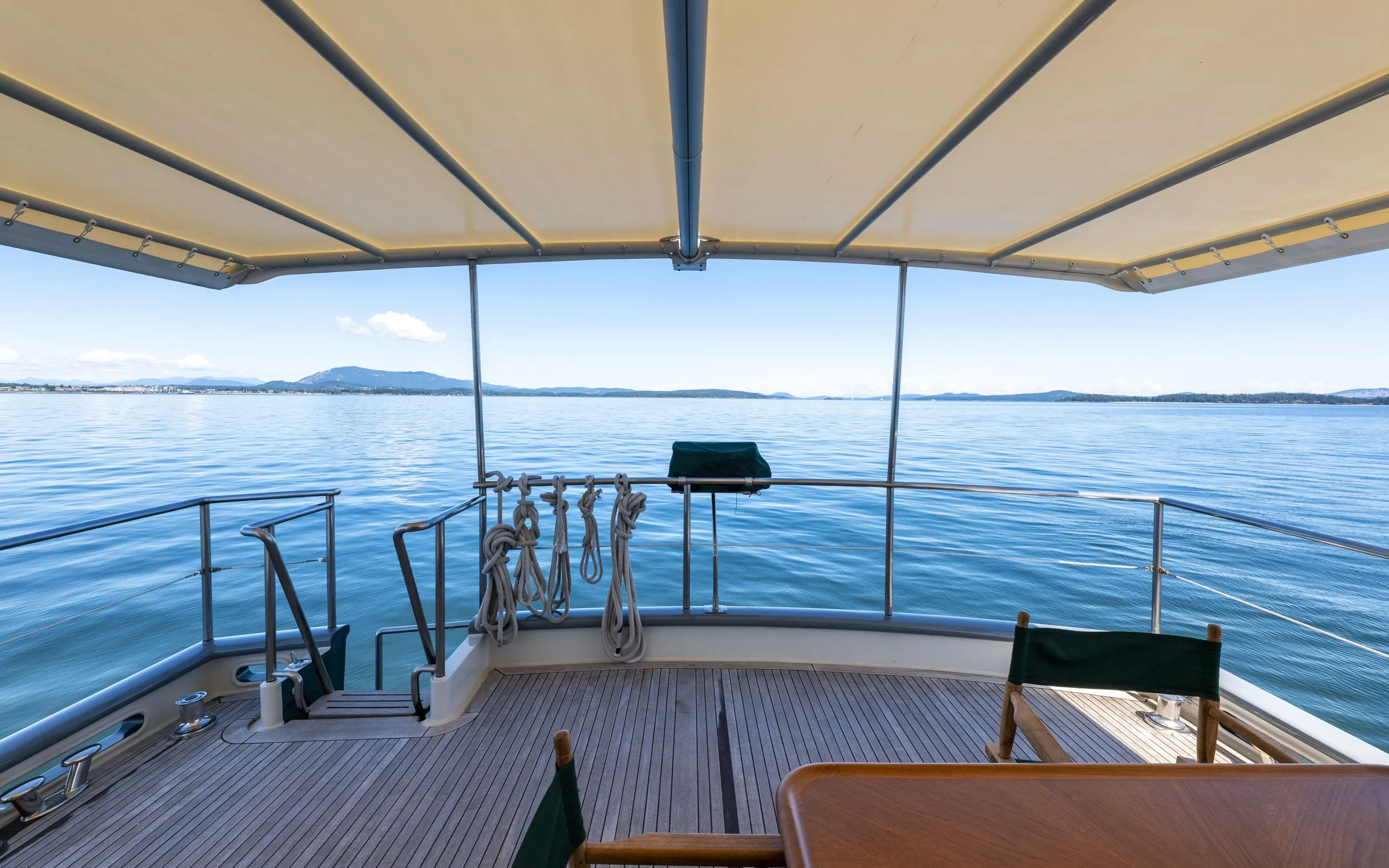

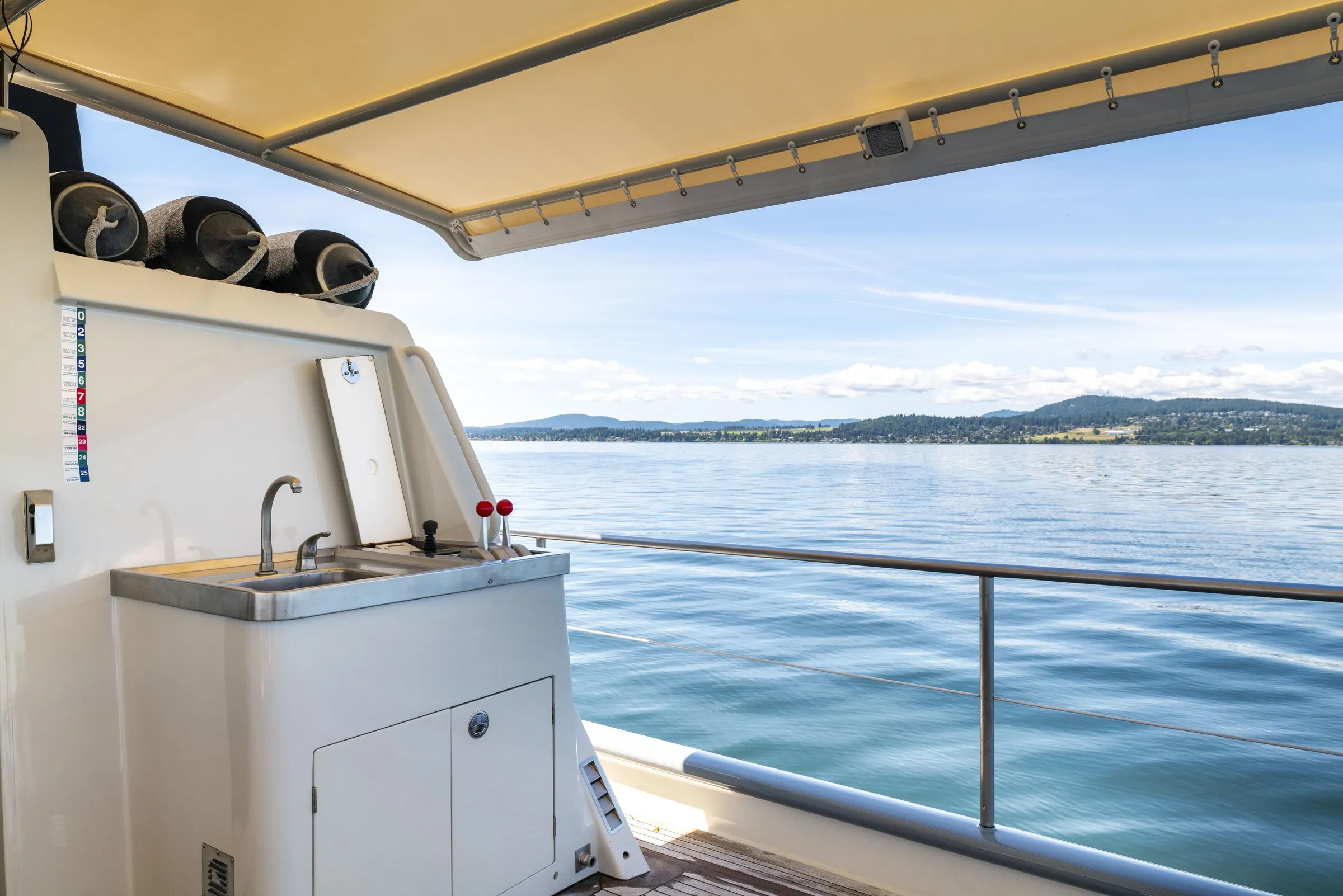

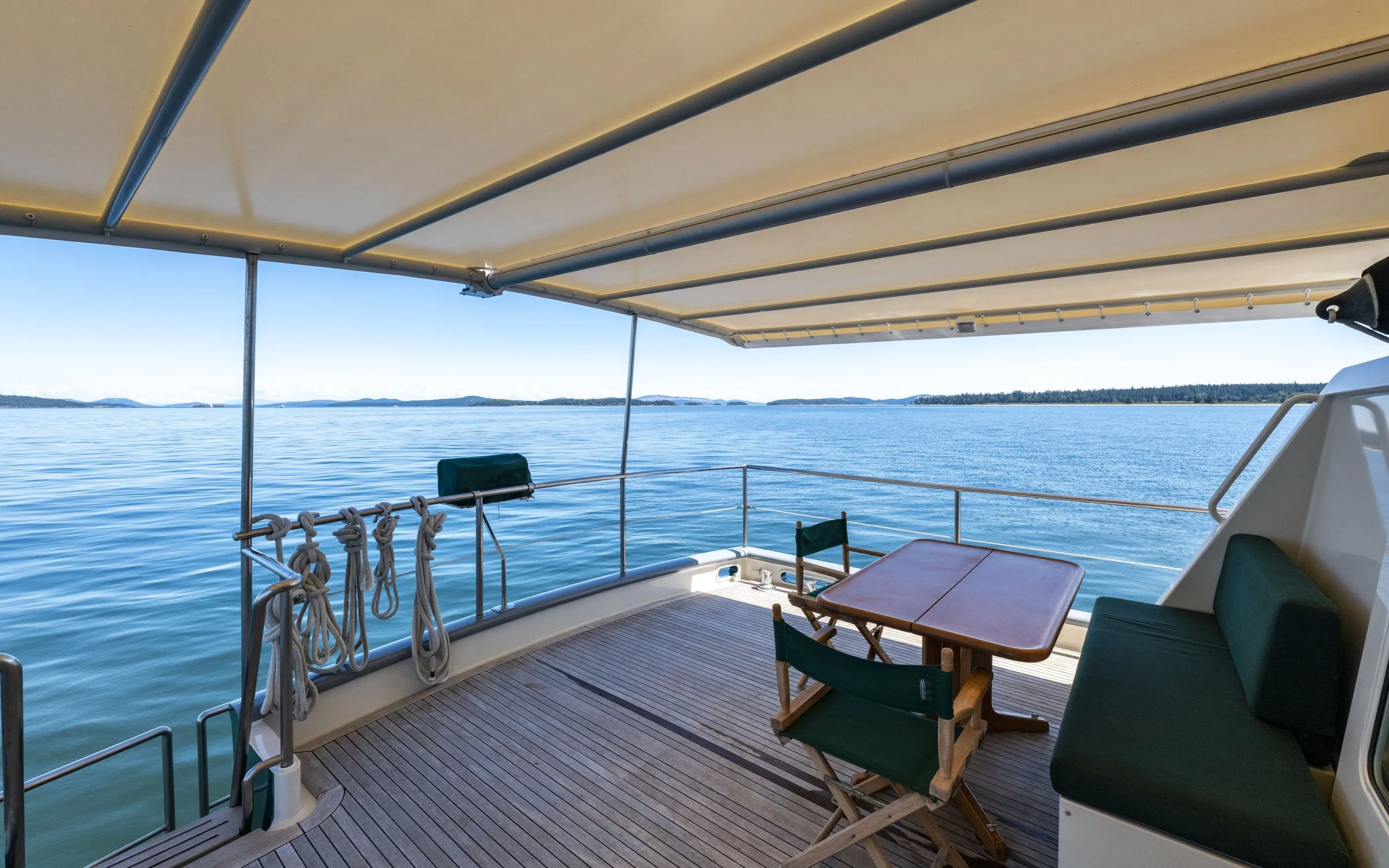

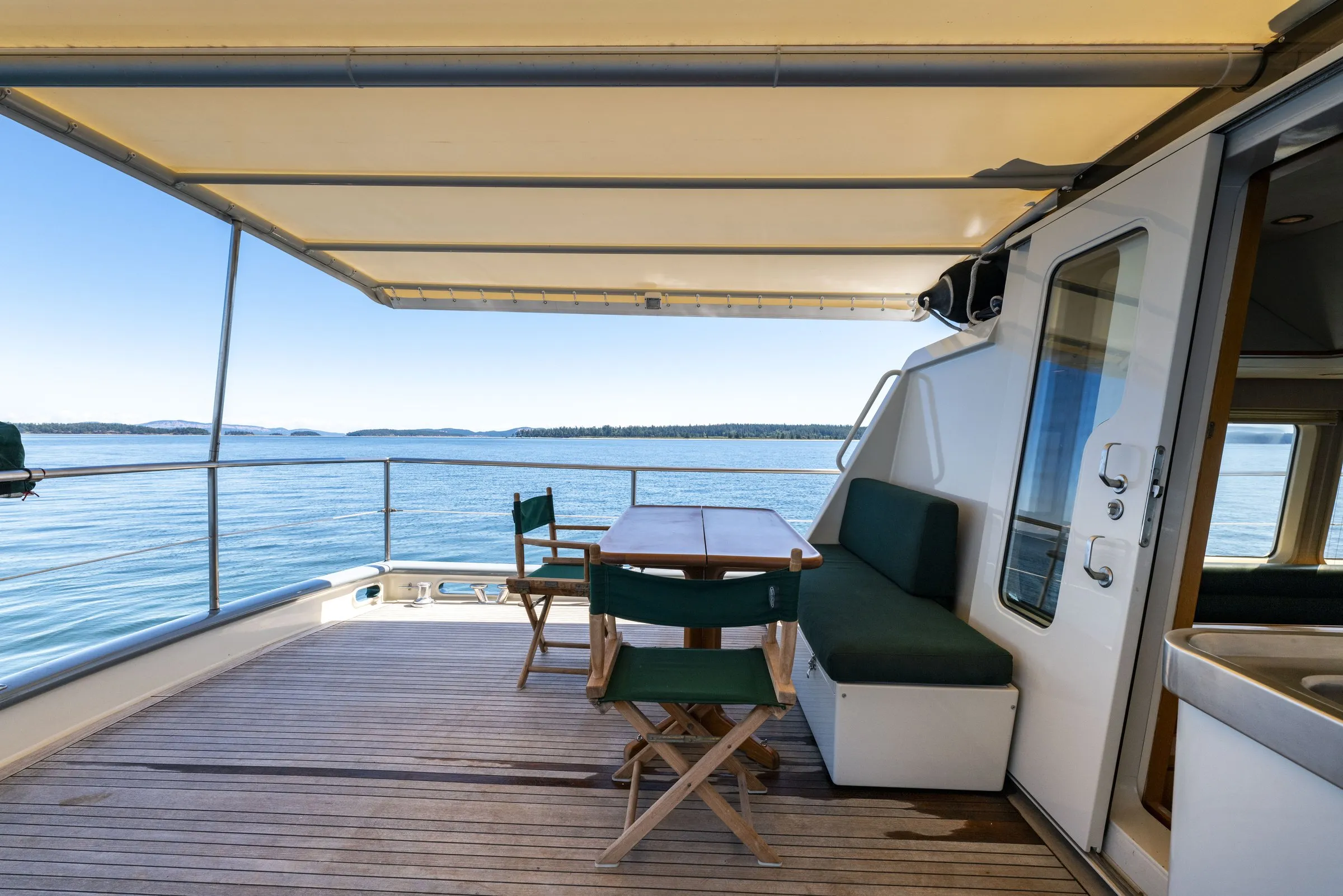

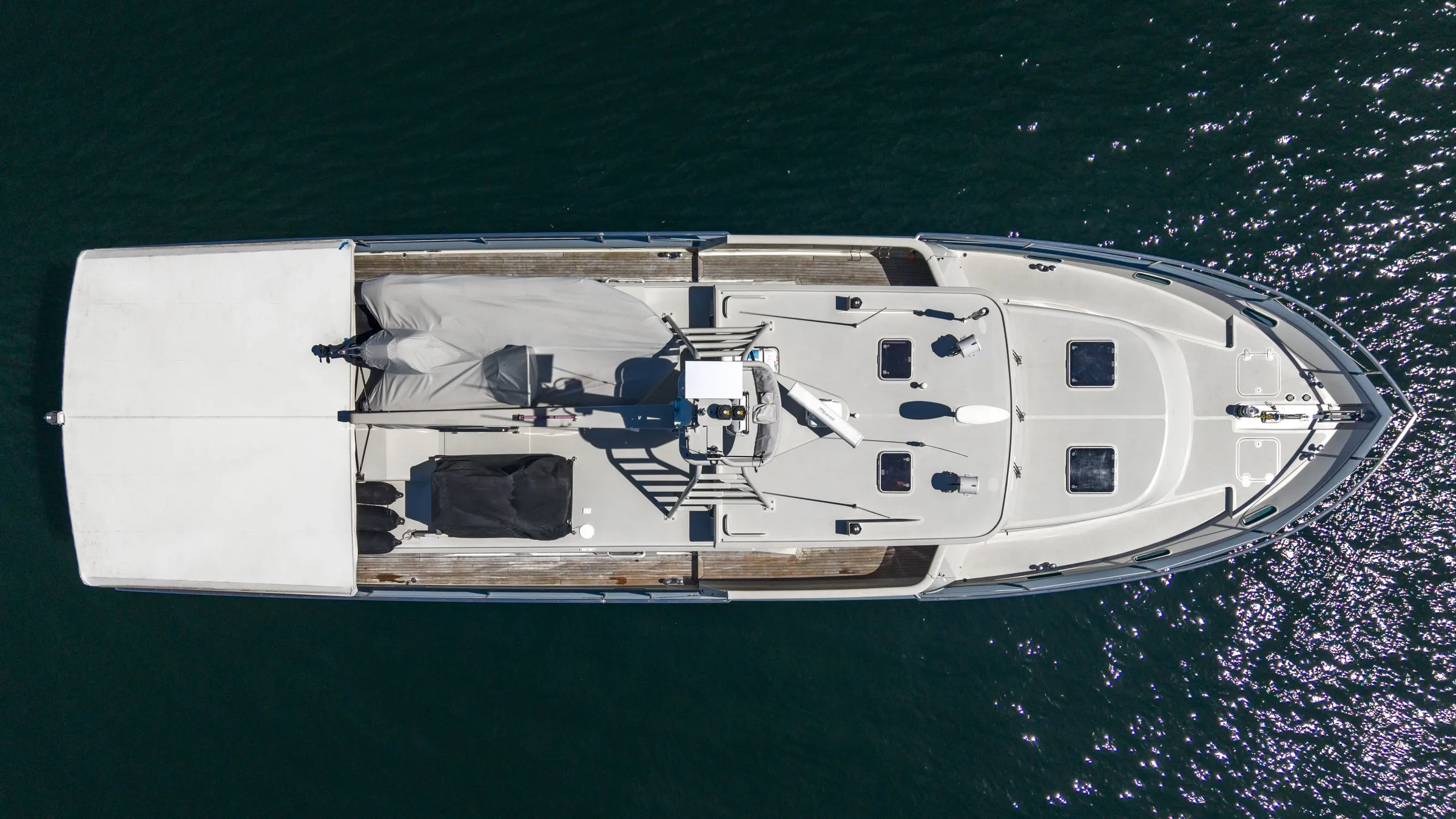

On deck, the mast carries a crow’s nest steering station for marina and confined-water manoeuvring. It lowers to boathouse height using the large hydraulic davit, which also launches the 14′ RIB and the electric ATV. A third control station is on the aft deck.

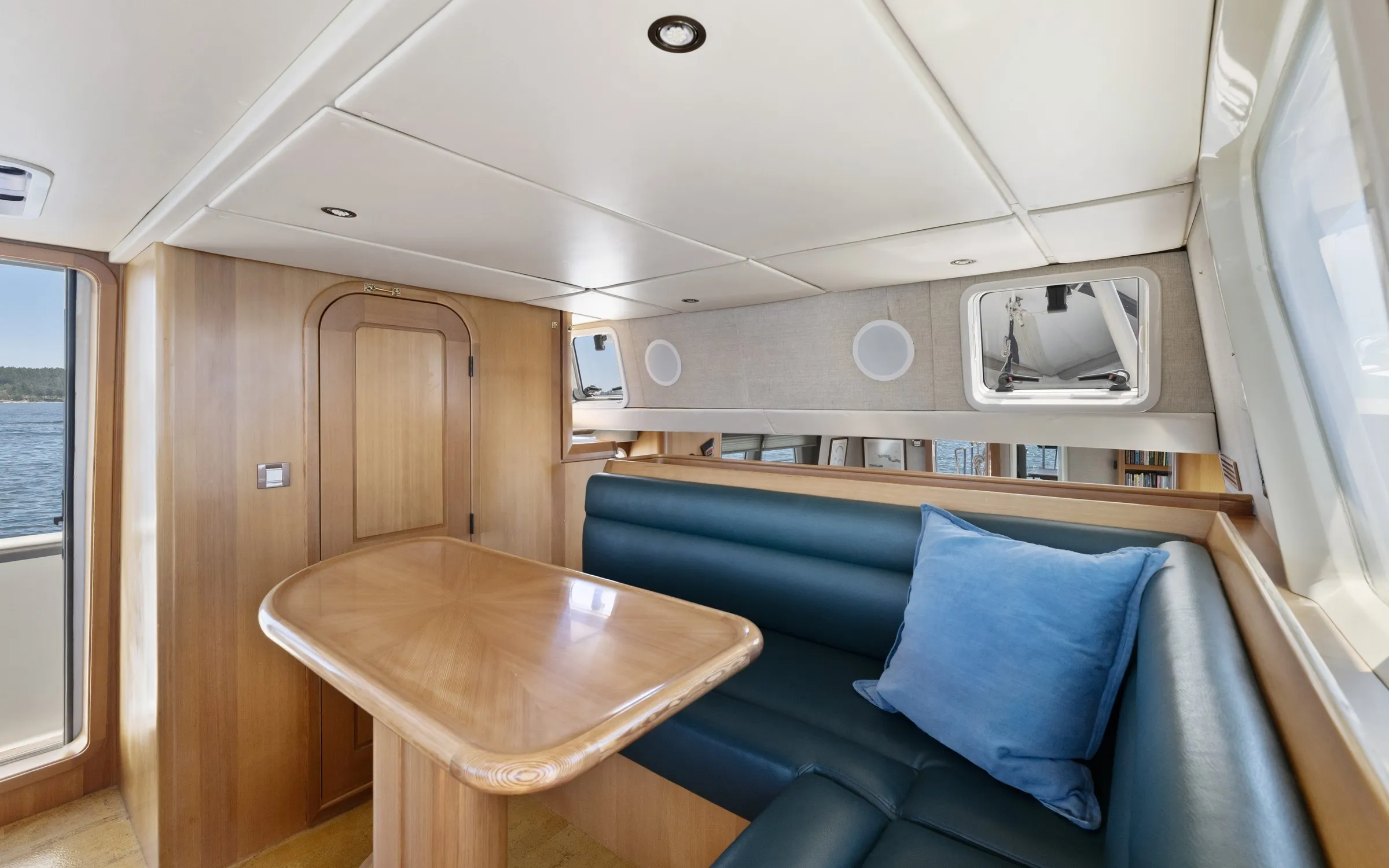

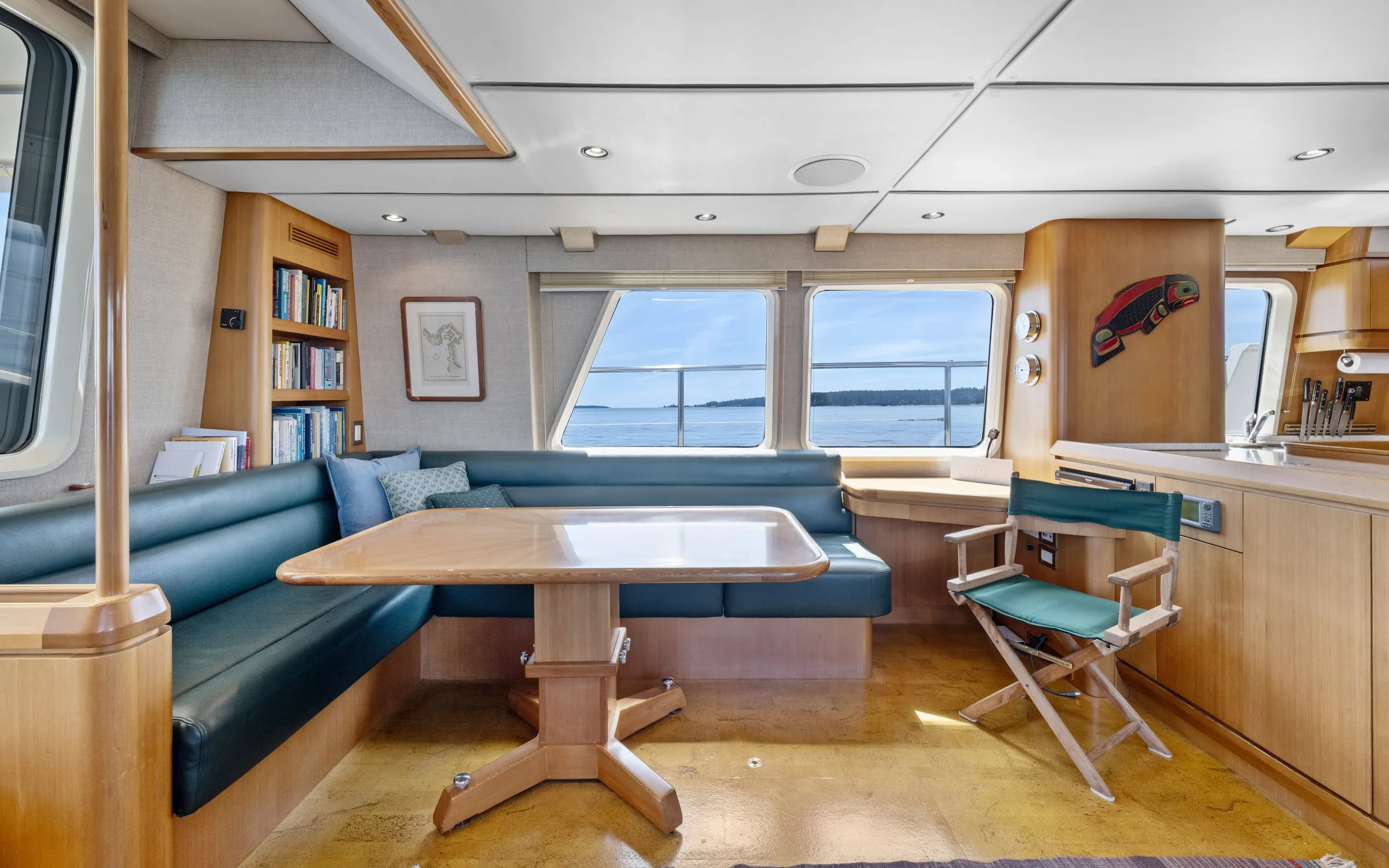

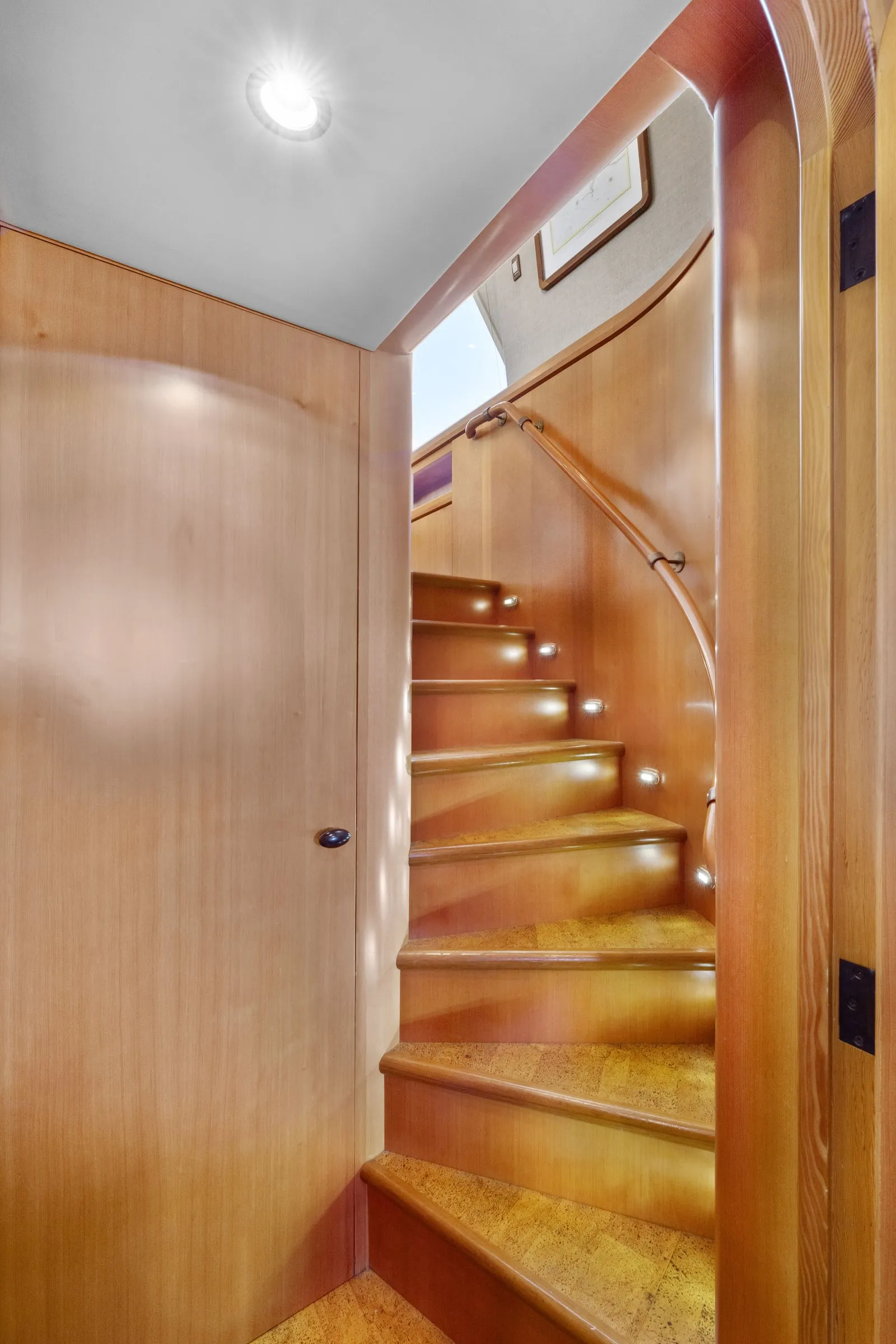

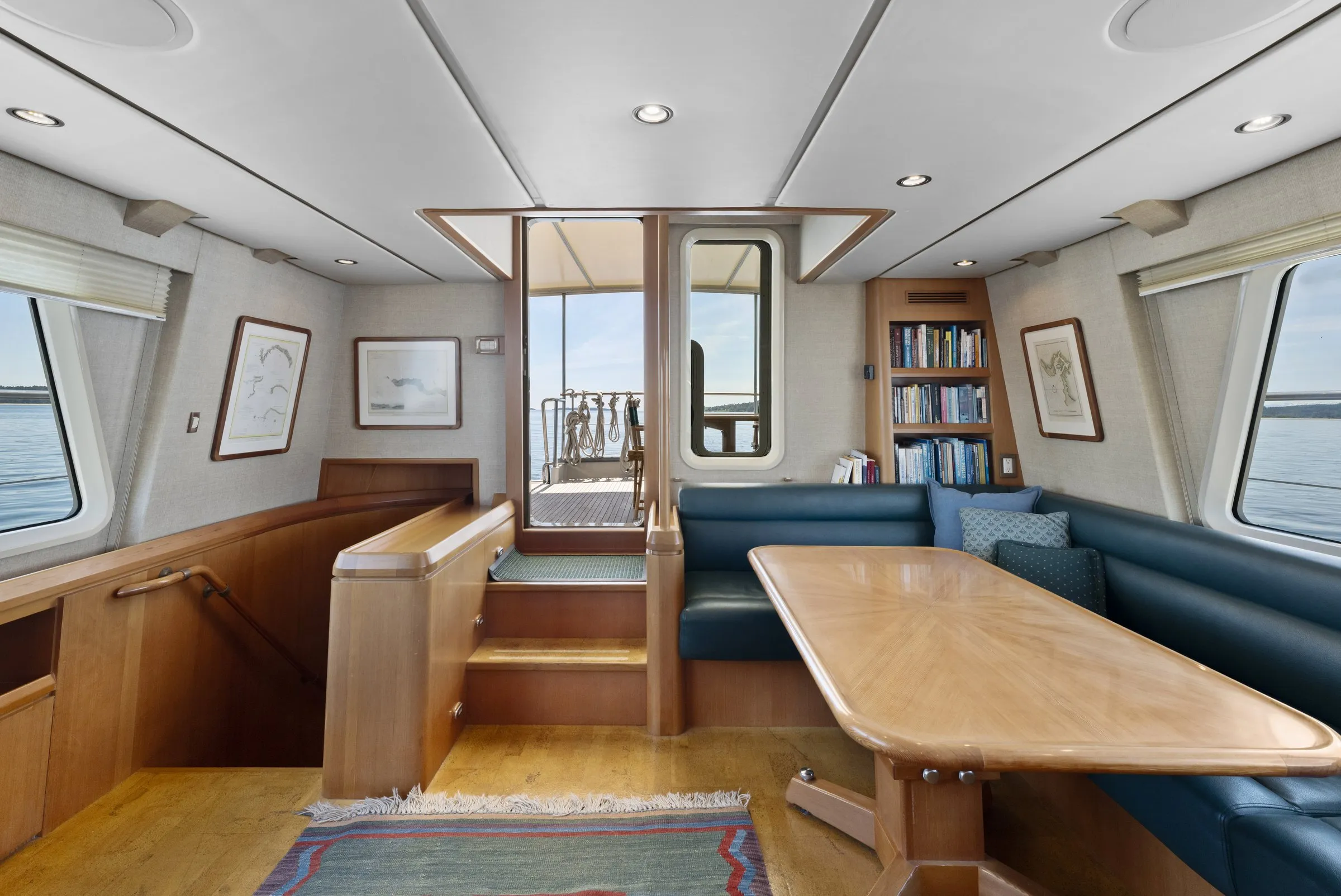

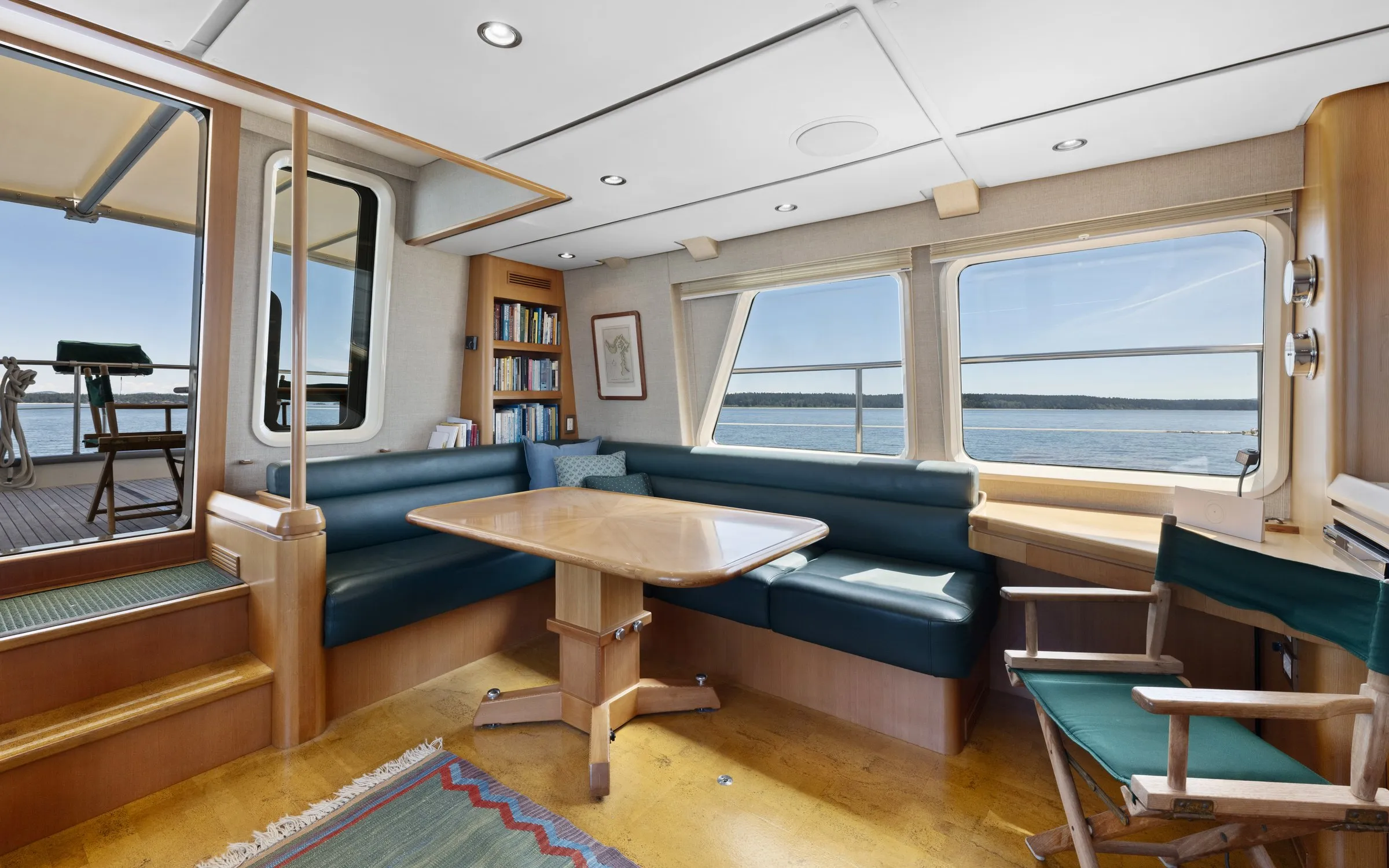

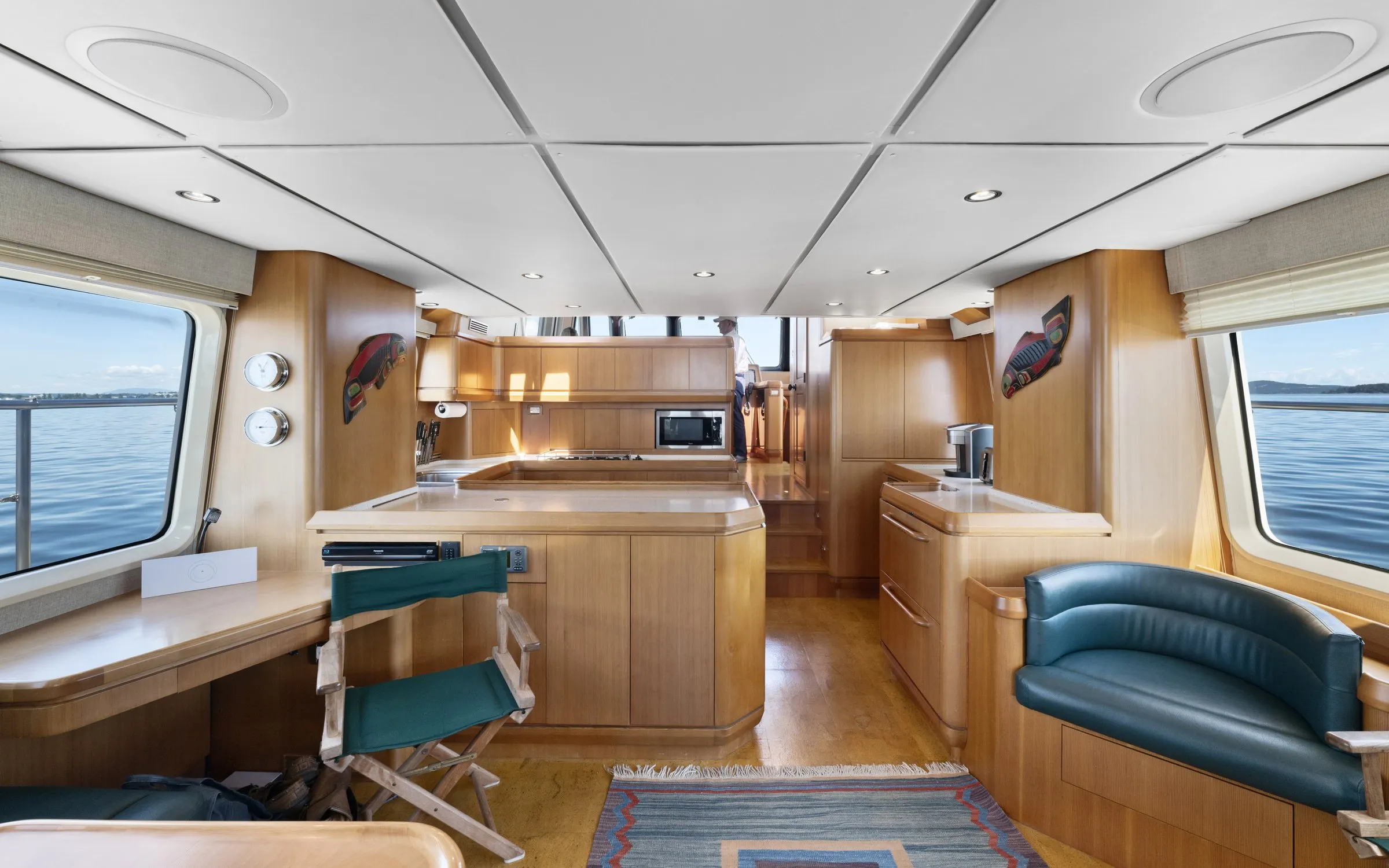

In contrast to the patrol theme outside, the interior is all yacht: bright and airy Douglas fir joinery, cork soles, and top-quality fixtures and appliances. Tricell honeycomb panels were used to reduce weight, lowering her centre of gravity to improve sea keeping and making auxiliary stabilisation unnecessary.

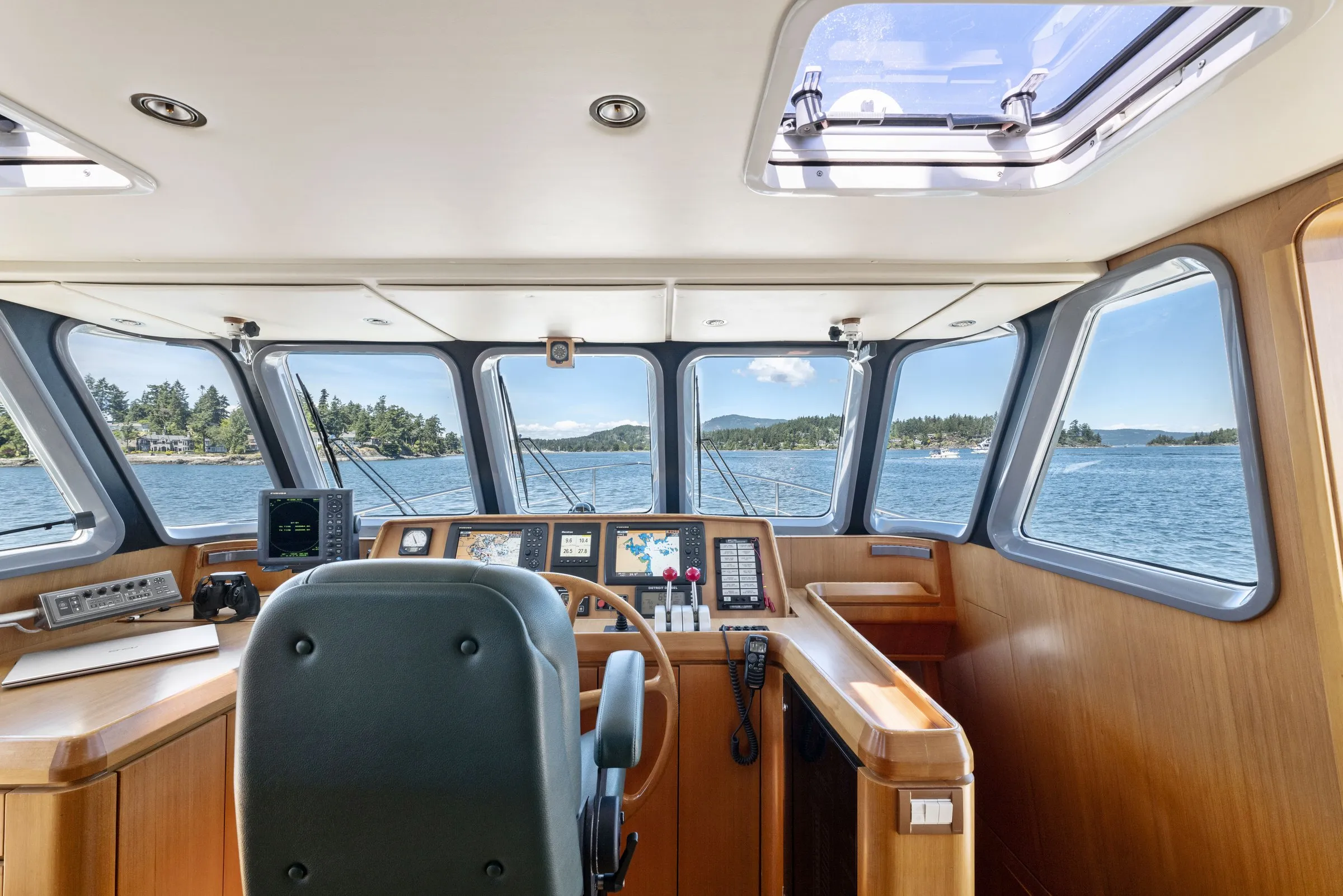

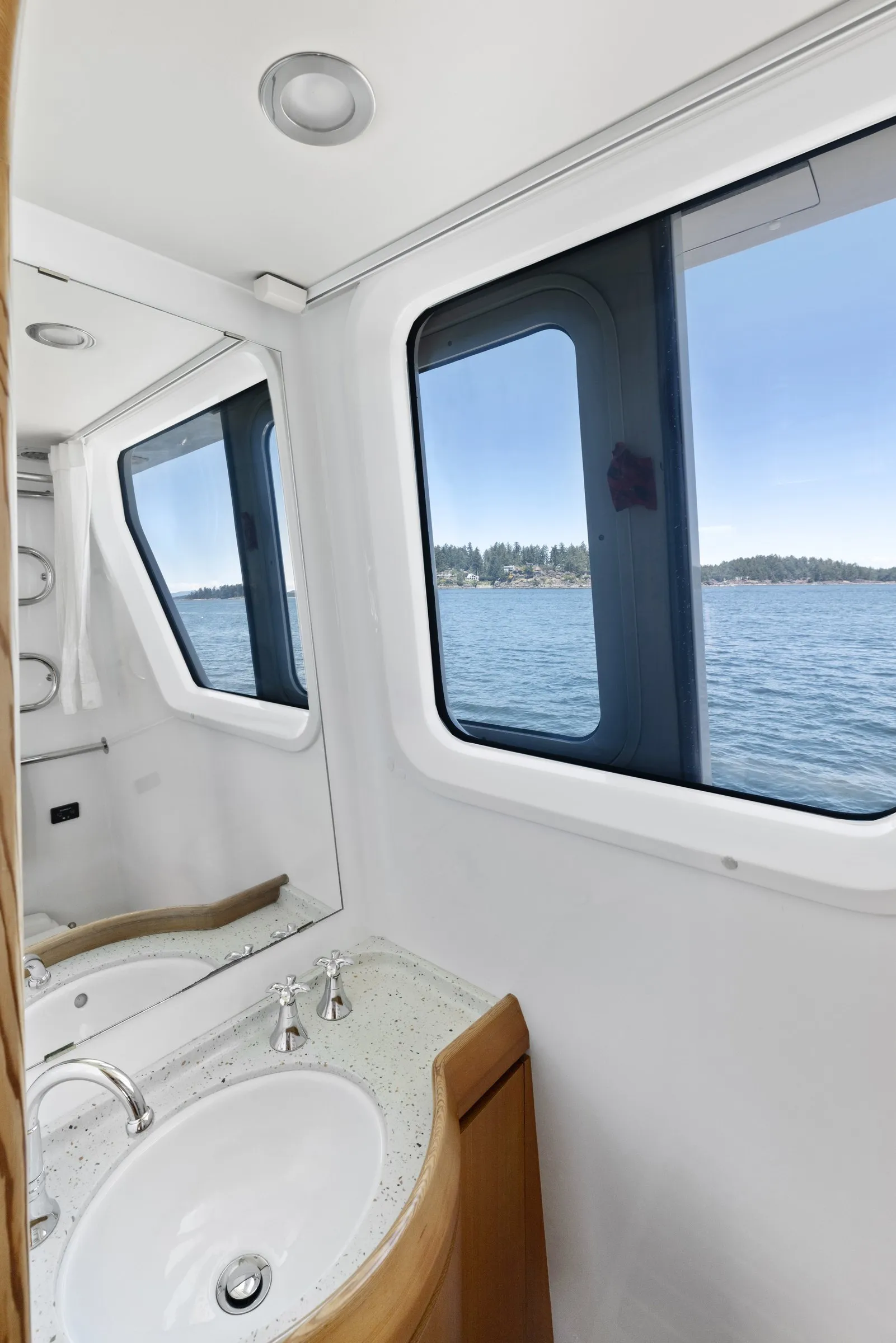

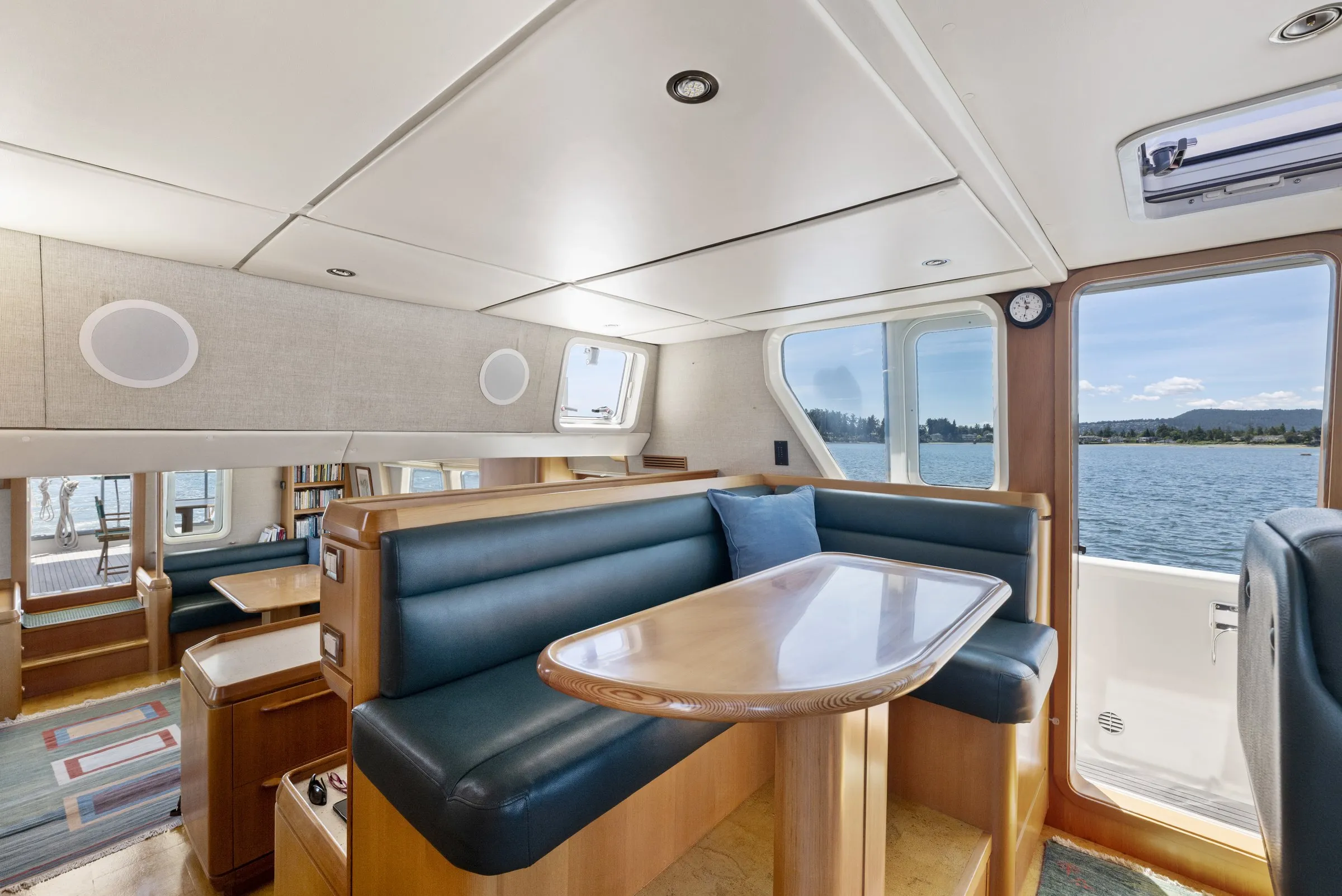

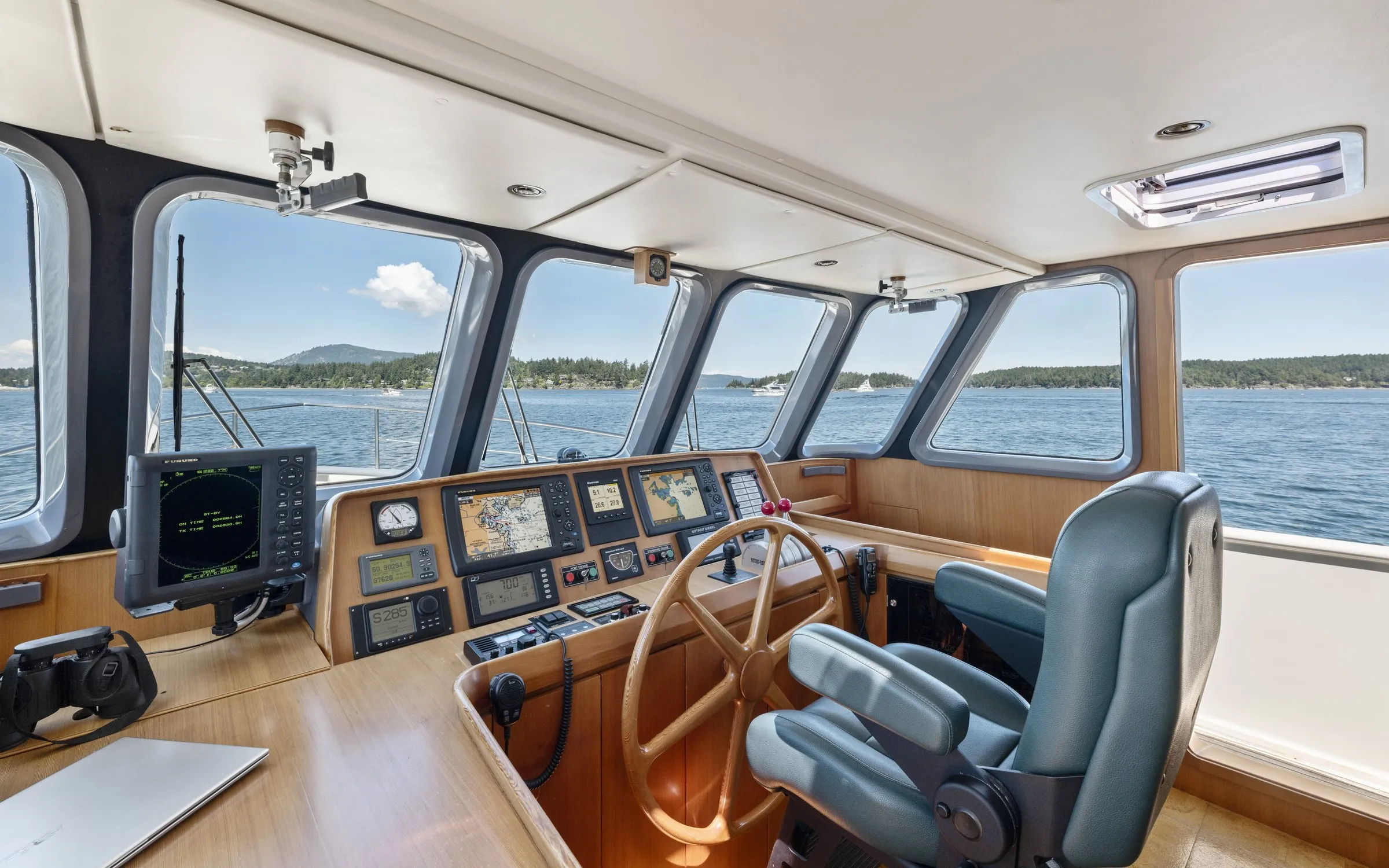

All glazing is double pane and nitrogen filled, giving acoustic and thermal performance rarely experienced in pleasure yachts. The pilothouse offers 360-degree visibility and its own day head, making it the seaman-like station for close-quarters piloting and extended passages.

Complete and redundant Furuno electronics including sonar combine with Maretron monitoring, Prime Mover Controls and commercial-grade components throughout, producing a reliable and confidence-inspiring vessel that has made annual voyages to Alaska from her boathouse in Sidney, BC every year since construction.

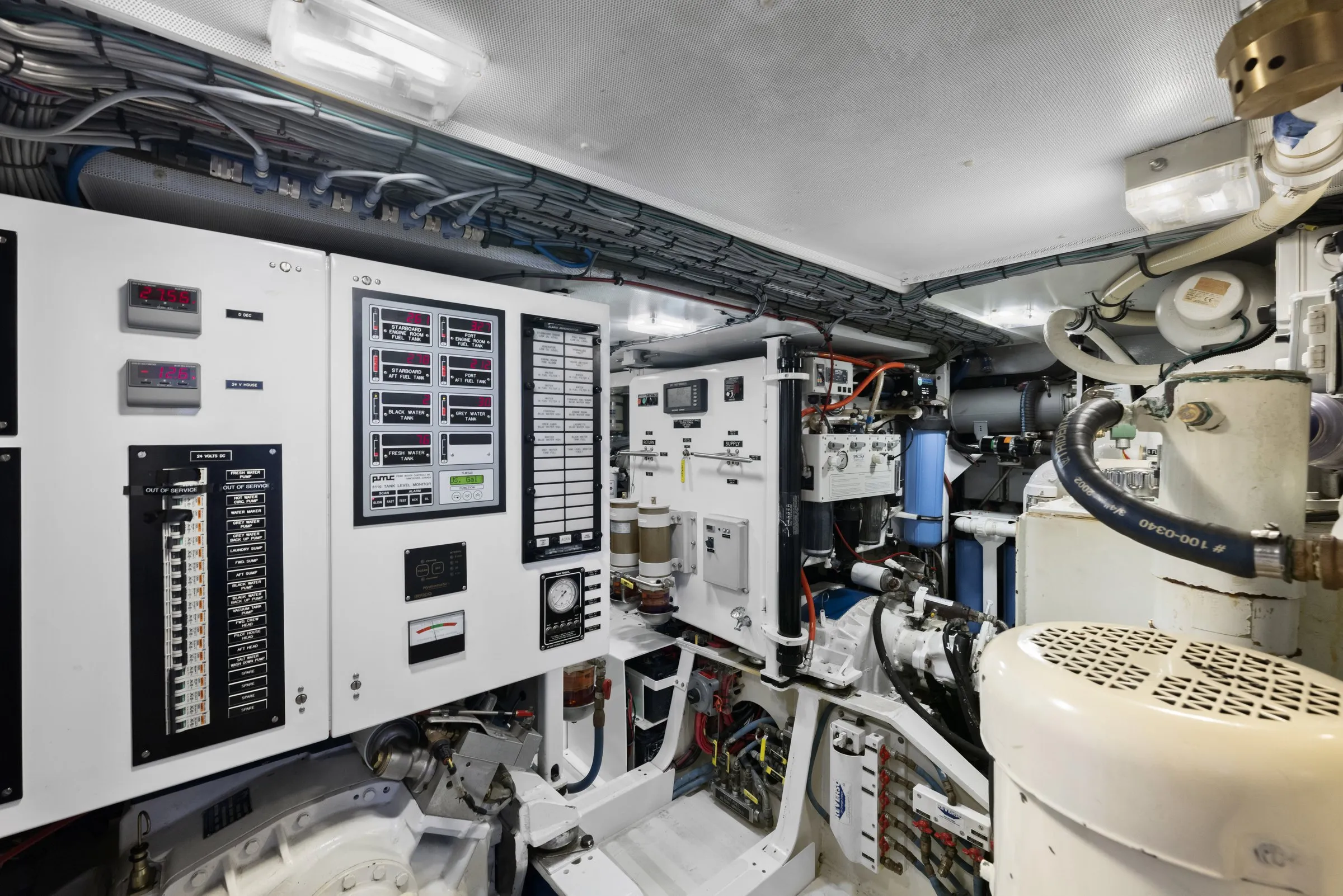

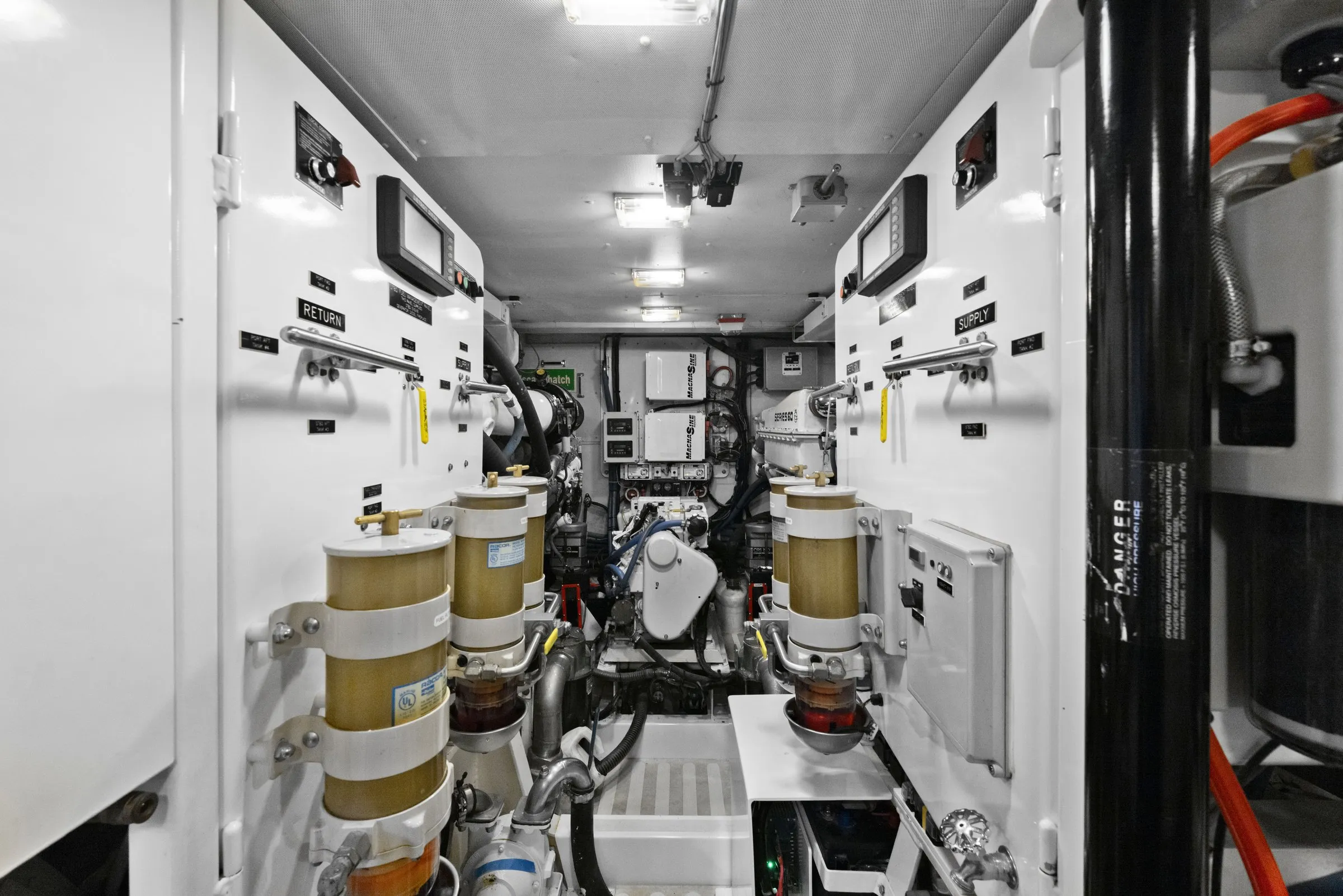

A large 2,100 amp hour house bank of AGM batteries, two Trace 4000 inverters and a hydraulic alternator provide ample silent mooring and recharging capability for offshore or coastal cruising. The full-height engine room makes routine checks and maintenance straightforward.

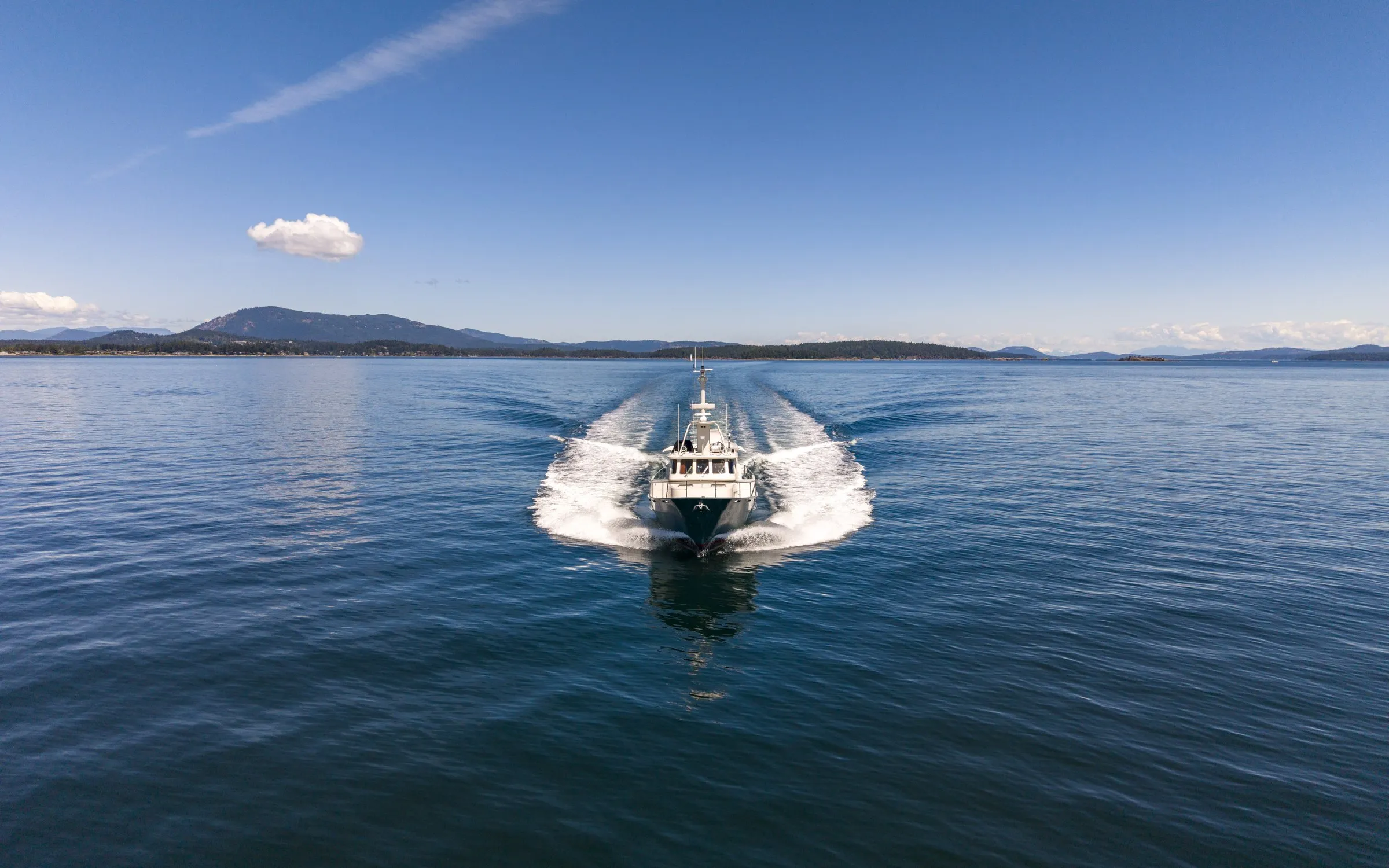

A maximum of 22 knots, an economical 12 to 16 knot cruise and 1,100 miles of range at 12 knots put distant destinations within modest timelines when they are wanted. A proven, fully found “anywhere, anytime” motor yacht in top condition — a rare opportunity.

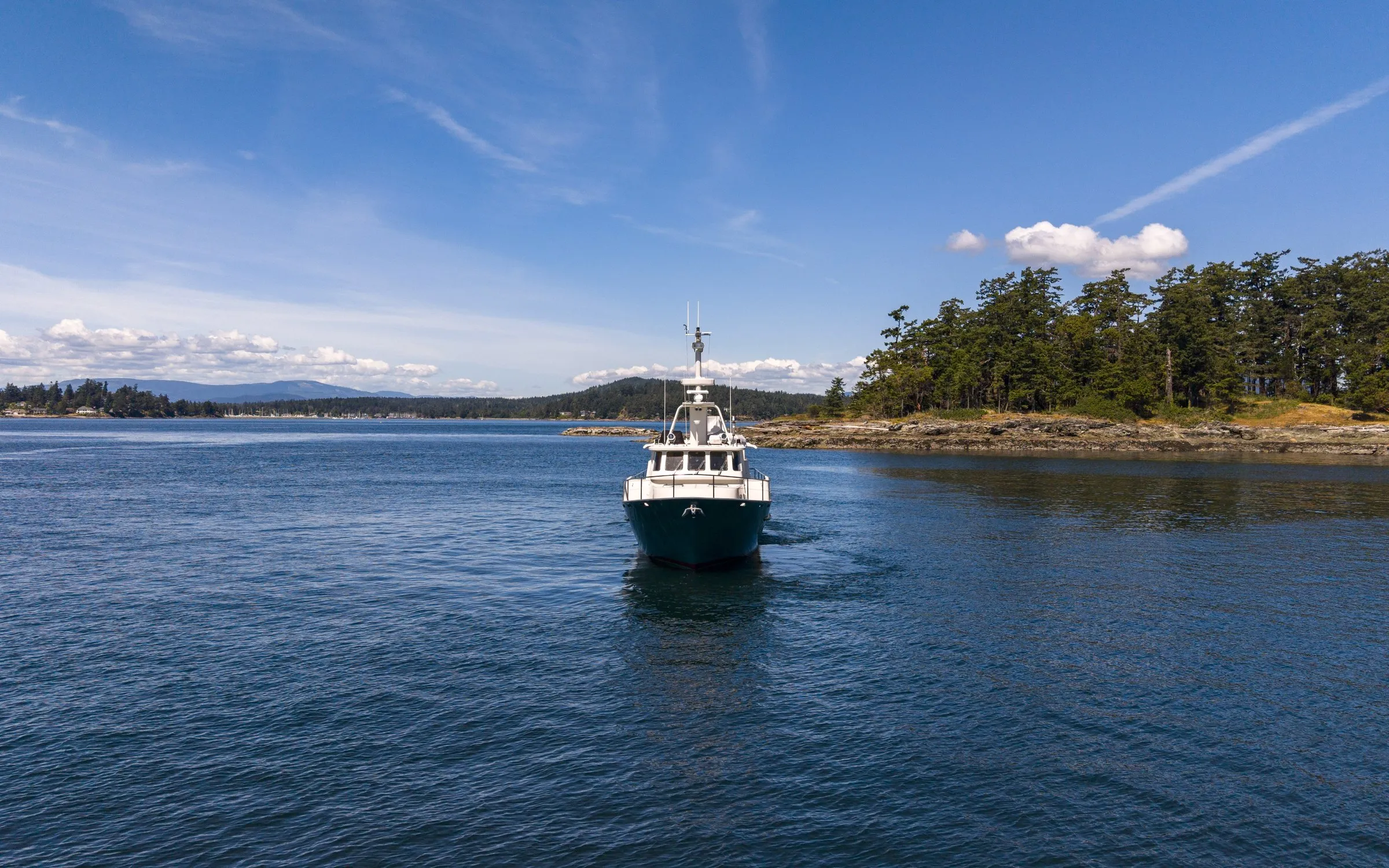

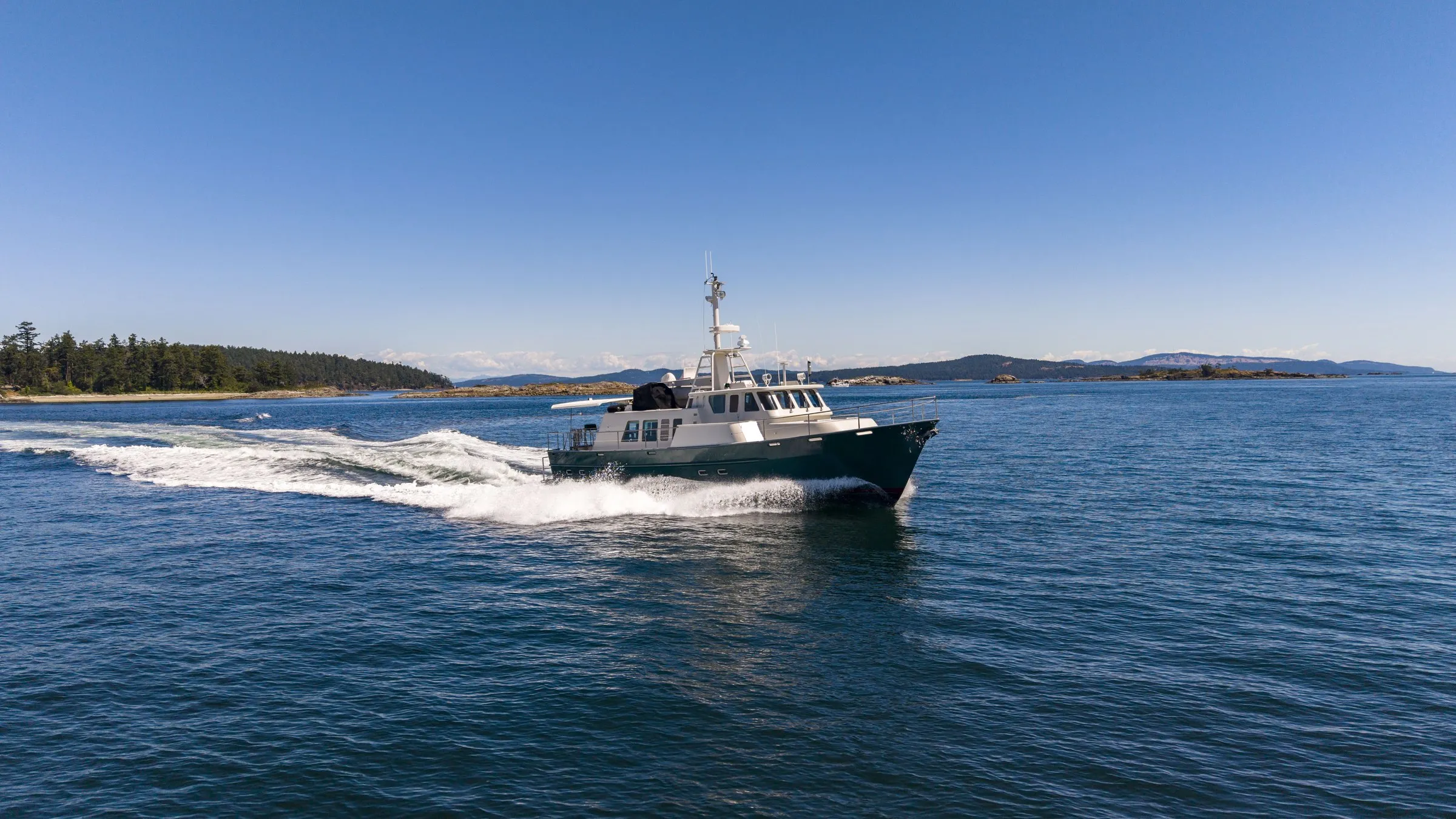

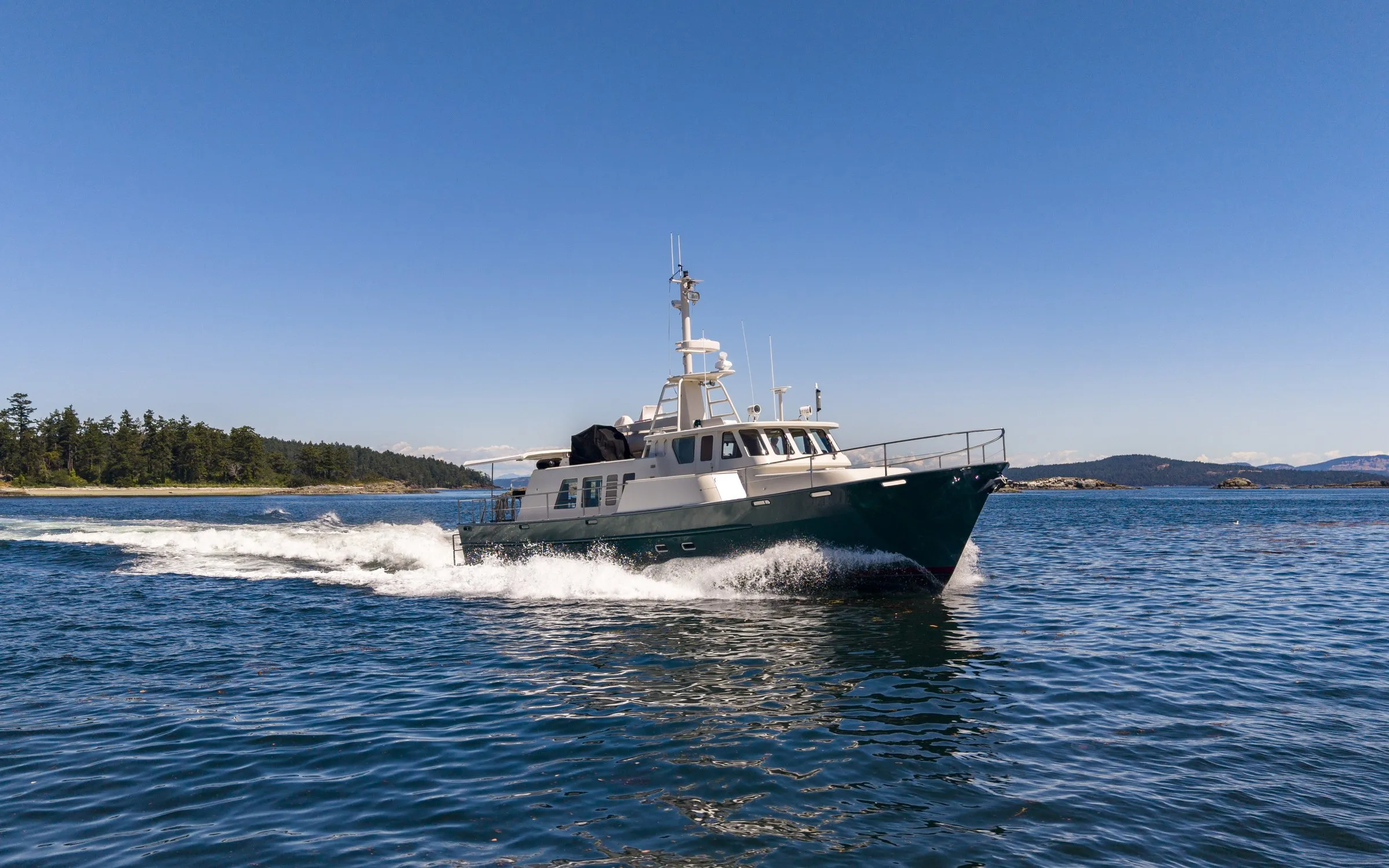

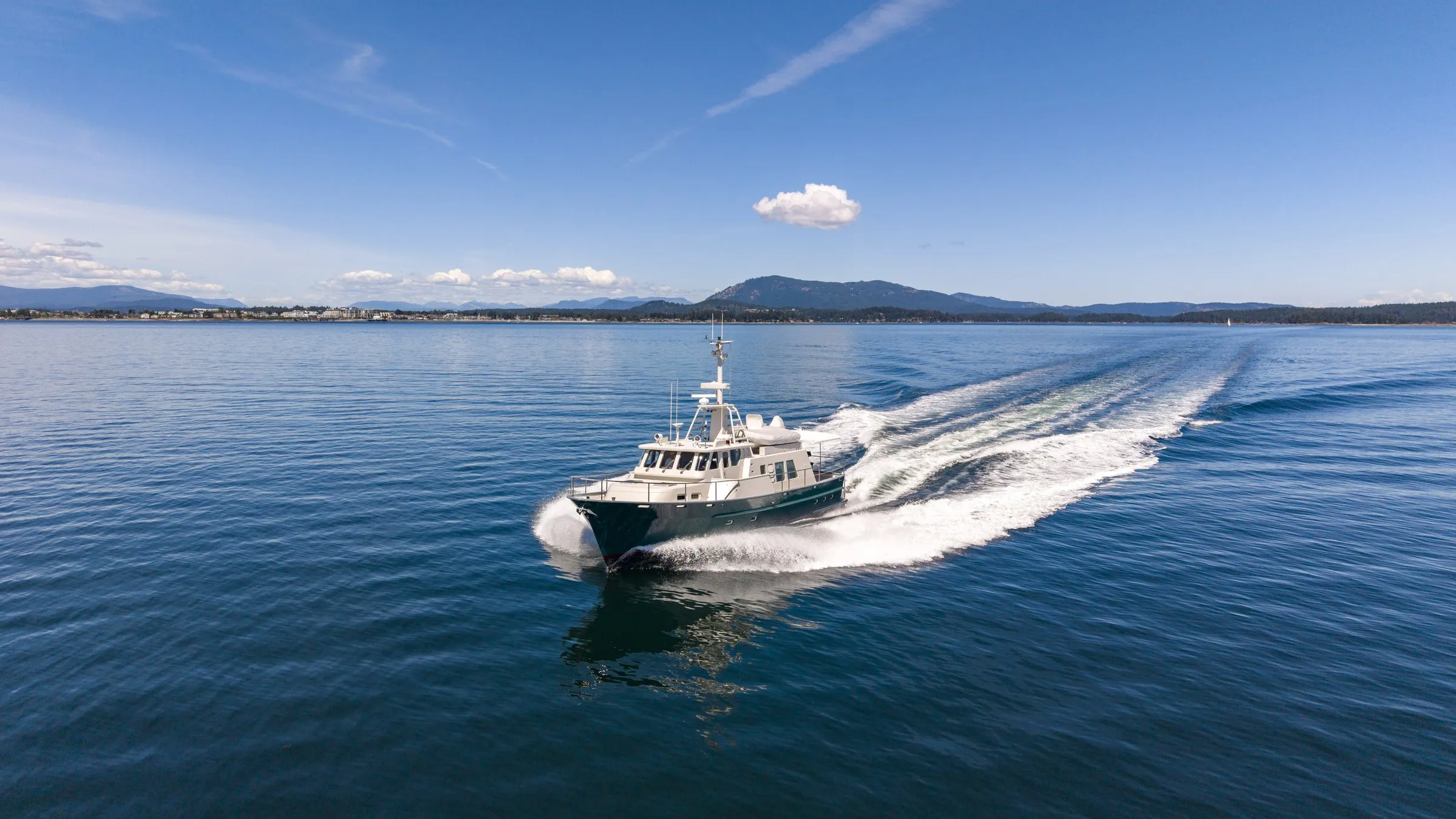

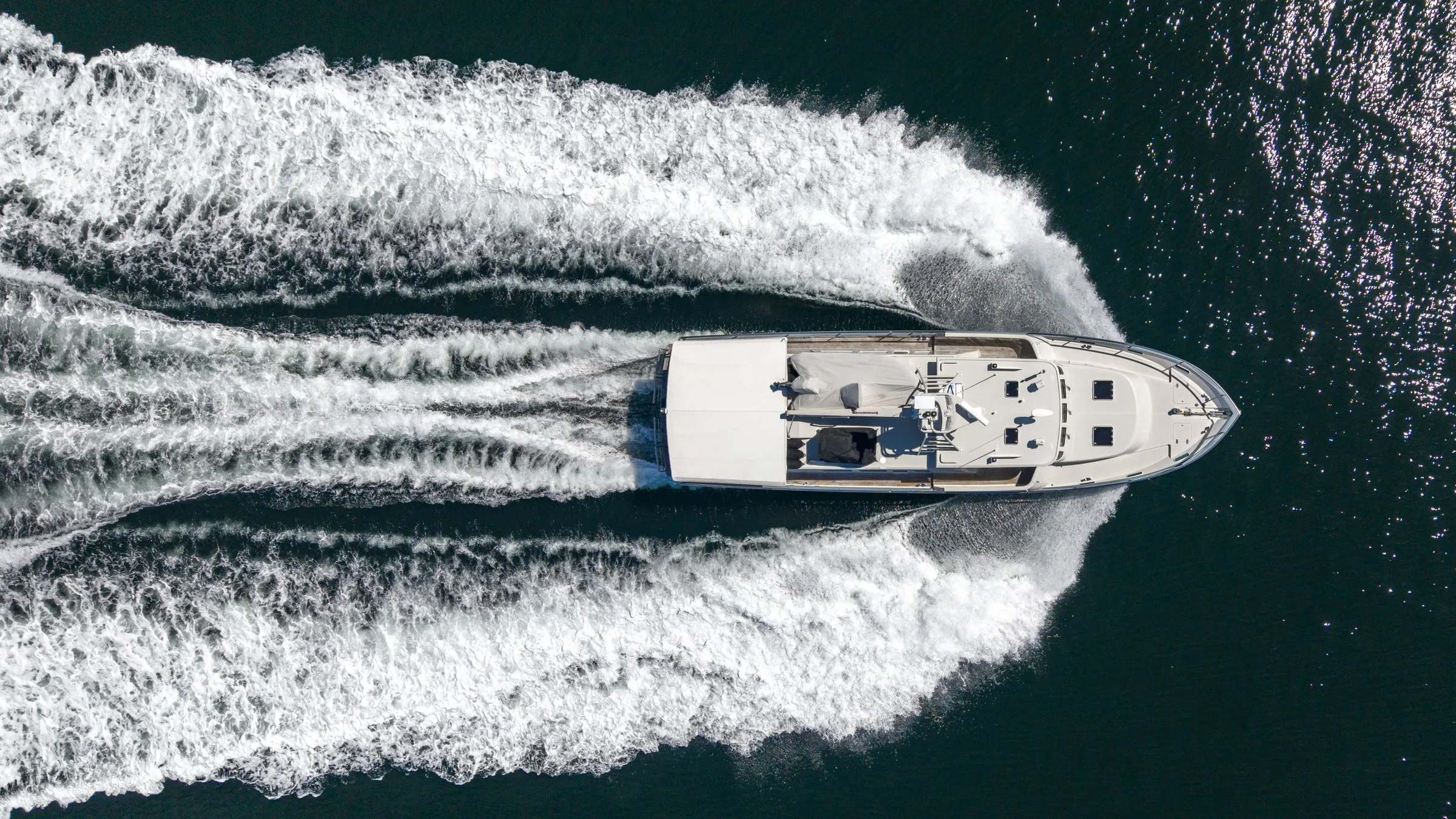

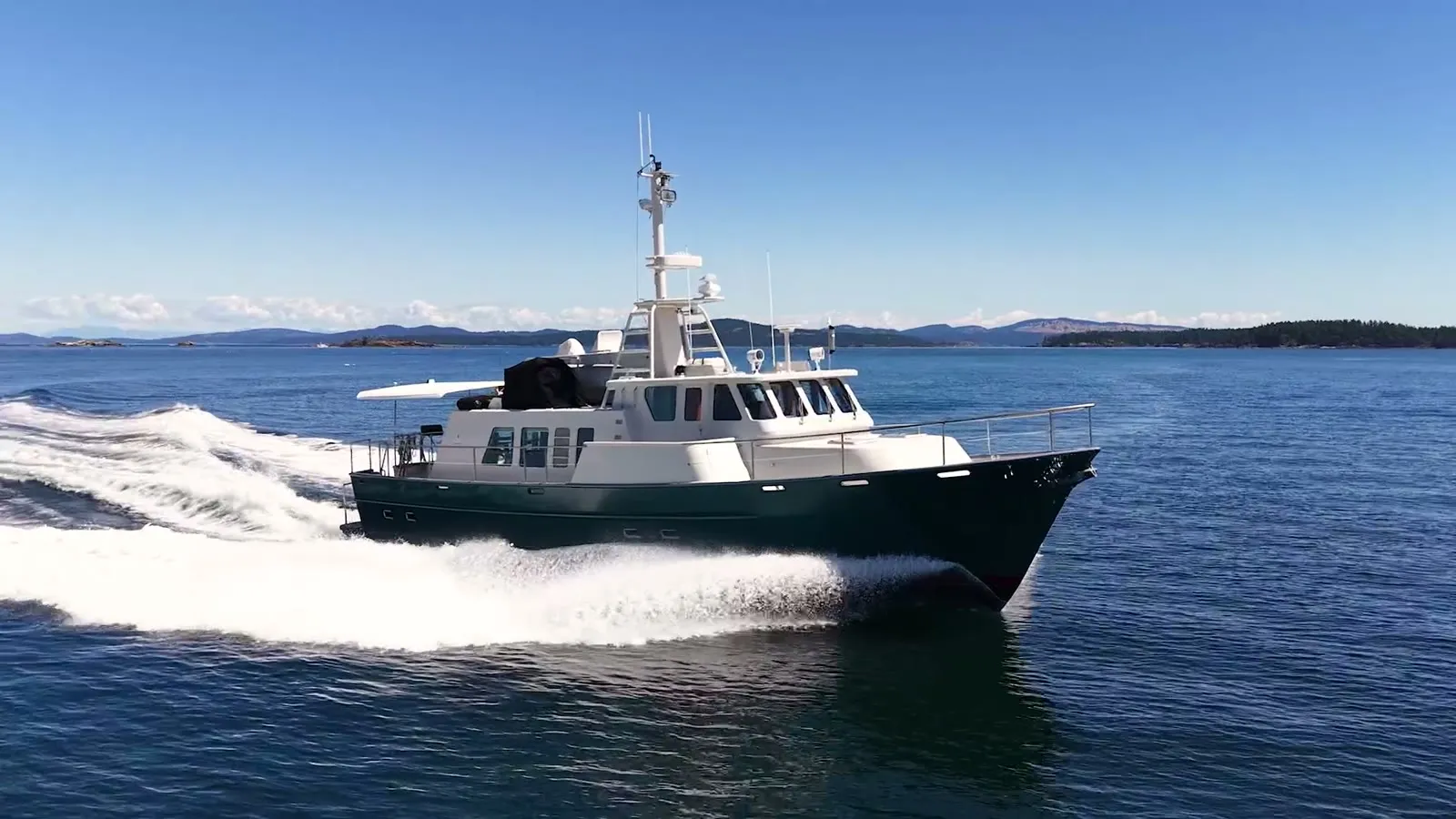

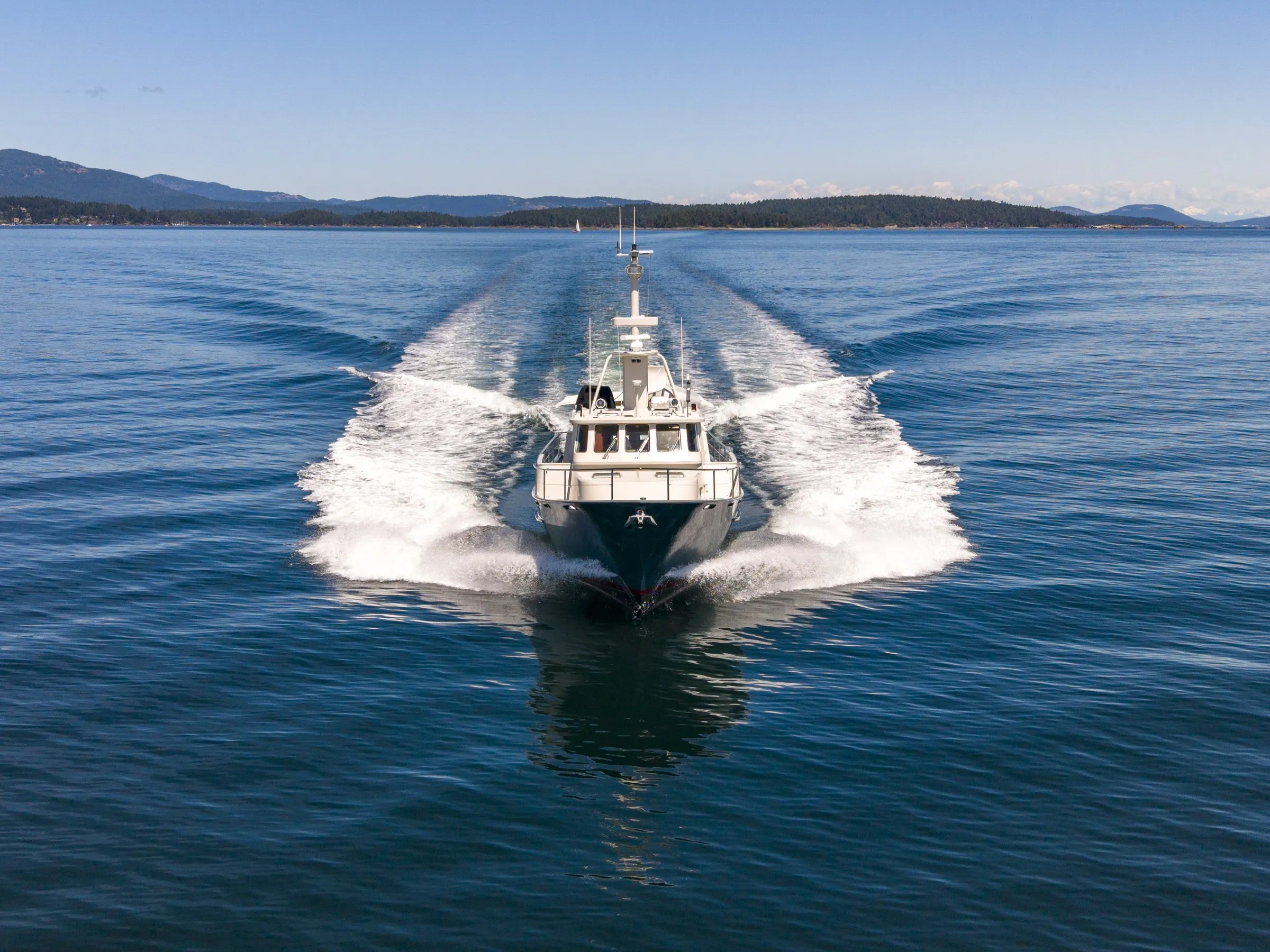

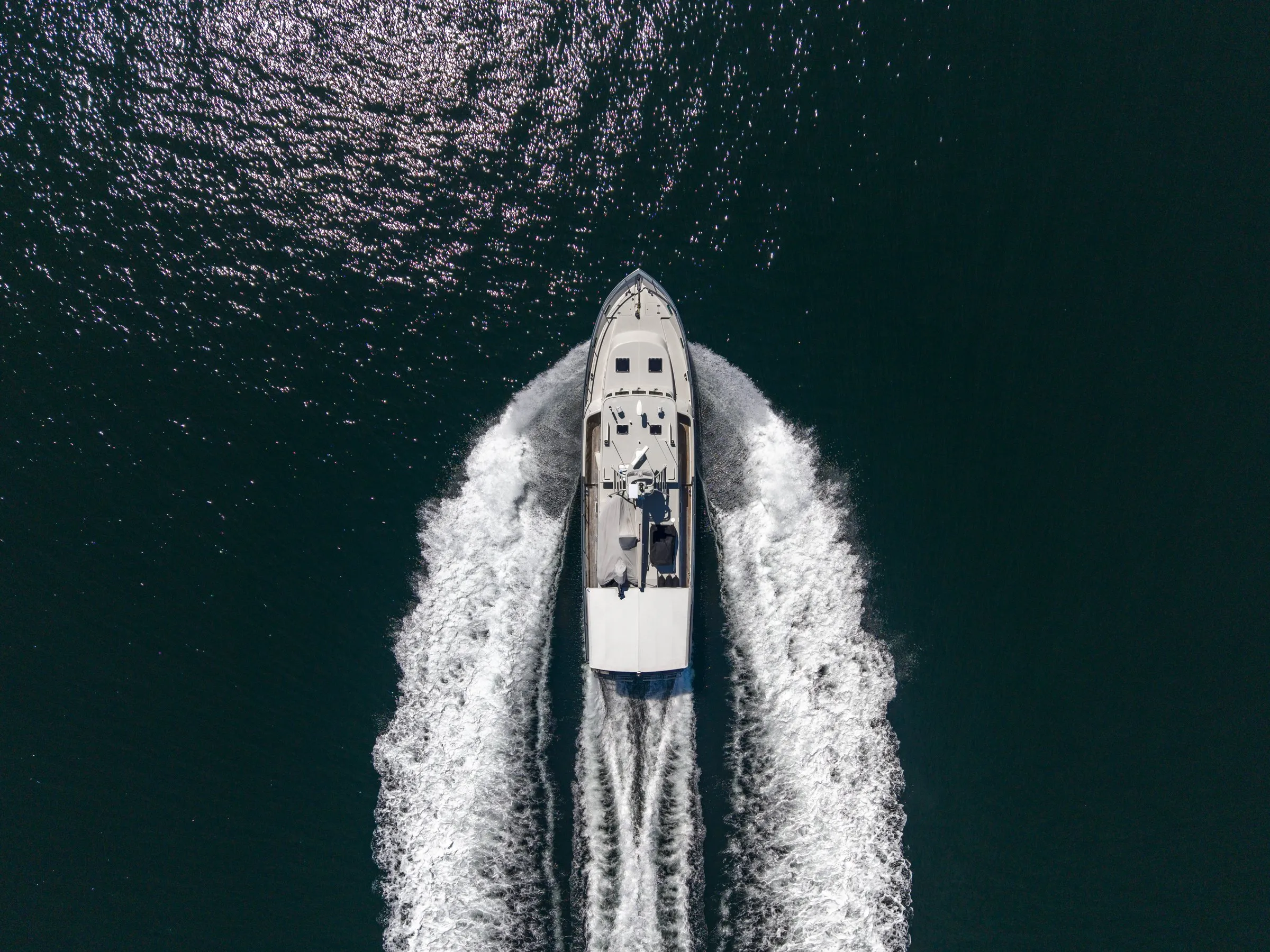

Umiak V under way
Umiak V under way — plays with sound.

Built in this yard

Her lines start here

Umiak V was built in this yard. Her hull lines come from the same William Garden Post Class series we have been building since the 1970s.

Full particulars

Specification

As supplied by the owner. Every figure should be confirmed by survey before purchase.

Machinery

  • Main engines — 2 × Detroit Series 60, 700 hp, 3,900 hours
  • Gears — ZF v-drives 350-V, 2.636:1
  • Drivelines — 2 × Aquadrive
  • Controls — DDEC electronic, synchronizer, three station
  • Stations — pilothouse, aft deck, crow’s nest
  • Propulsion — AIR Contur carbon fibre 5-blade props, extra blades
  • Spare bronze 4-blade props and spare prop shaft
  • Generator — Northern Lights 12kW, 830 hours
  • Hydraulics — thrusters, davit, cruise alternator, windlass
  • Watermaker — Spectra Santa Cruz 400 gpd 24VDC
  • Heat — Webasto hot water
  • Steering — Wagner N80-190
  • Head system — Sealand Vacuflush, Techma
  • Bow thruster — 10″ American Bow Thruster, 25 hp hydraulic
  • Hot water — Isotemp 10-040R, 220VAC 750W
  • Fire system — Cease Fire 36 lb
  • Bilge pumping — 4 electric, 1 Jabsco hydraulic driven
  • Black and grey water pumps — Gianneschi and Ramacciotti 24VDC
  • Fresh water pump — Headhunter Excalibur 24VDC
  • Engine air — Delta T intake louvers, EBM fans
  • Oil change system — Reverso GP706
  • Filters and sensors — Racor
  • Shaft seals — PSS
  • Exhausts — DeAngelo, Soundown, Centek
  • Horn and air compressor — Buell

Finishing

  • Joinery — Douglas fir, Tricell honeycomb
  • Soles — cork
  • Wood finish — urethane
  • Wall covering — woven vinyl
  • Glazing — double pane, nitrogen filled
  • Headliner — vinyl drop-down panels
  • Insulation — Armaflex, waterline and above, superstructure
  • Counter and vanity tops — Corian
  • Hardware — all 316 stainless steel

Electrical

  • Alternator charging — 2 × 175 amp alternators
  • Hydraulic alternator — Niehoff 450 amp
  • Panels — Philbrook’s custom
  • Transformer — Charles #93 Isoboost 50A
  • Lighting — all LED bulbs, Cantaluppi fixtures
  • Batteries — GNB 2 volt, 2,100 amp hours
  • Inverter/chargers — 2 × Trace 4000, Analytic Systems
  • Alarm system — Prime Mover Controls
  • Monitor system — Trace Interface
  • Entertainment — Marantz, Pioneer, Matrix Audio
  • Wipers — Speich pantograph and washers

Tankage

  • Fuel — 2,200 US gallons
  • Water — 350 US gallons
  • Black water — 125 US gallons
  • Grey water — 56 US gallons
  • New and waste oil — 30 US gallons
  • Tank monitors — Prime Mover Controls, Tank Tender

Deck

  • Windlass — Maxwell VWC 4000 hydraulic
  • Anchor rode — grade 40, 7/16″ high test
  • Winches — 2 × Maxwell VC 1200 hydraulic capstans
  • Shore cables — Glendinning Cablemaster 100′ 50 amp
  • Non-skid and teak — Awlgrip Griptex, Burmese teak
  • Hatches — Lewmar and Freeman
  • Cap rails — oval aluminium, Philbrook’s
  • Hand rails — oval 316 brushed stainless, Philbrook’s
  • Mast — hydraulic folding with crow’s nest
  • Liferaft — Datrex DX-SP-5-004, 6 man

Tenders & davit

  • Dinghy — 14′ Polaris rigid hull aluminium
  • Power — Yamaha 90 hp
  • Davit — Nick Jackson 3500 hydraulic
  • ATV — electric four-wheel drive

Electronics

  • Radar — Furuno 1935
  • Plotter/GPS — 2 × Furuno NavNet 3, MFD 12
  • Depth, speed, temperature — Furuno
  • Engine gauges — DDEC
  • Autopilot — Robertson, Vickers pumps
  • Computer — Android, Garmin Navionics
  • Monitors — Maretron DSM250
  • Sonar — Furuno CH252
  • Searchlights — Francis L230Lv, 120V 300W
  • Alarm system — Prime Mover Controls
  • Compass — vertical card aviation, Ritchie
  • Satellite — Starlink

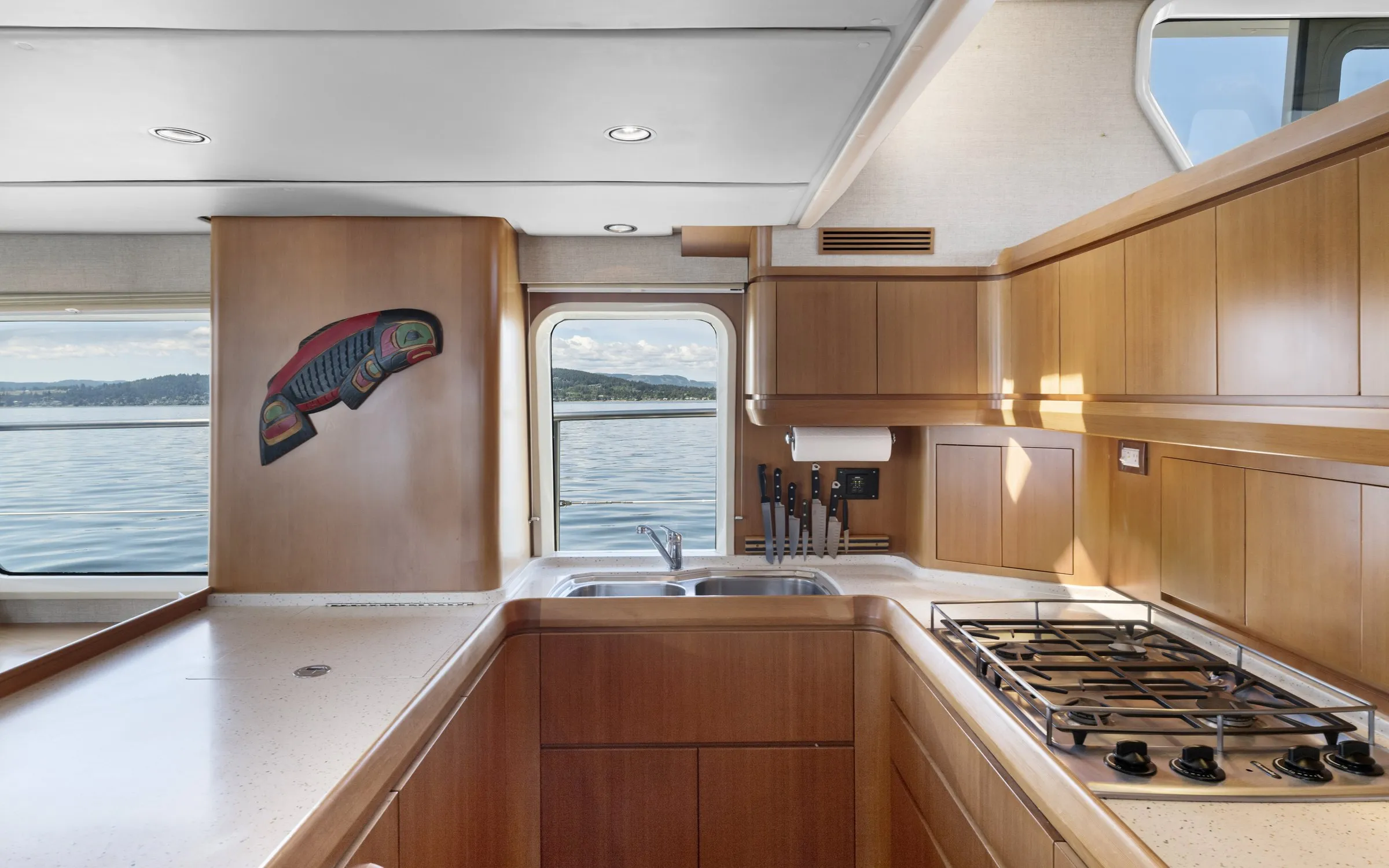

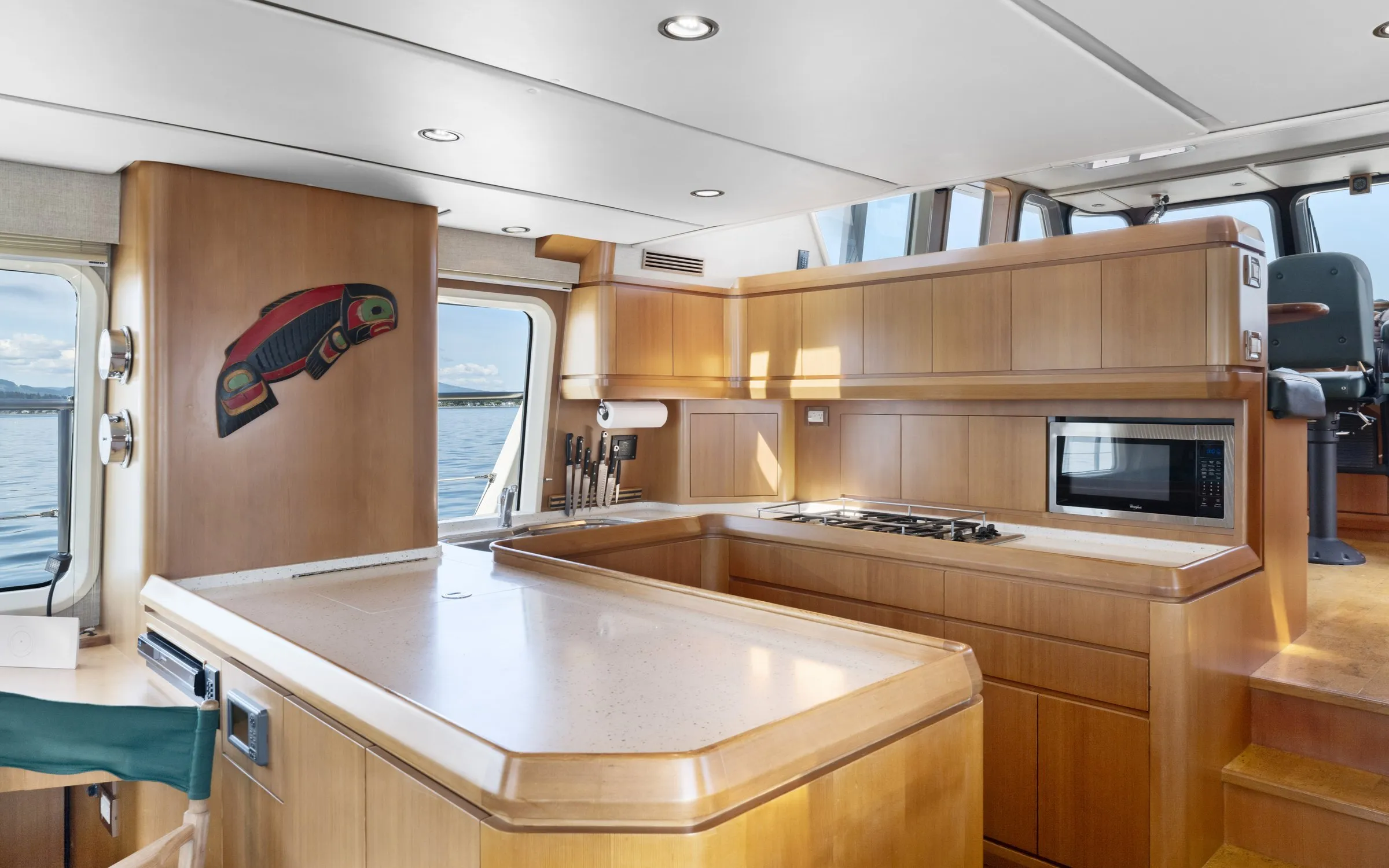

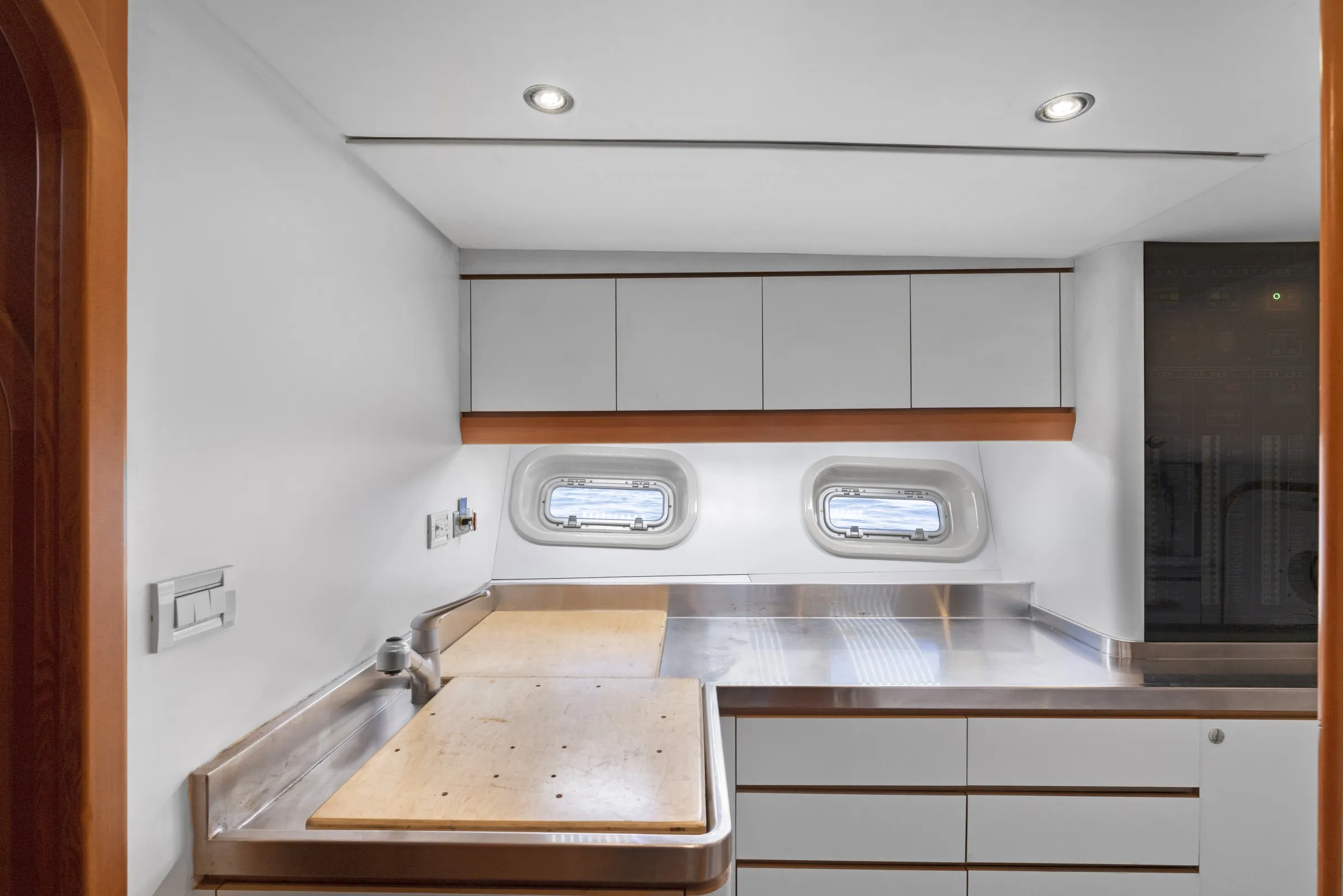

Galley & laundry

  • Refrigeration — 2 × Sub-Zero drawers
  • Freezer — Sub-Zero drawer, Novakool top loading

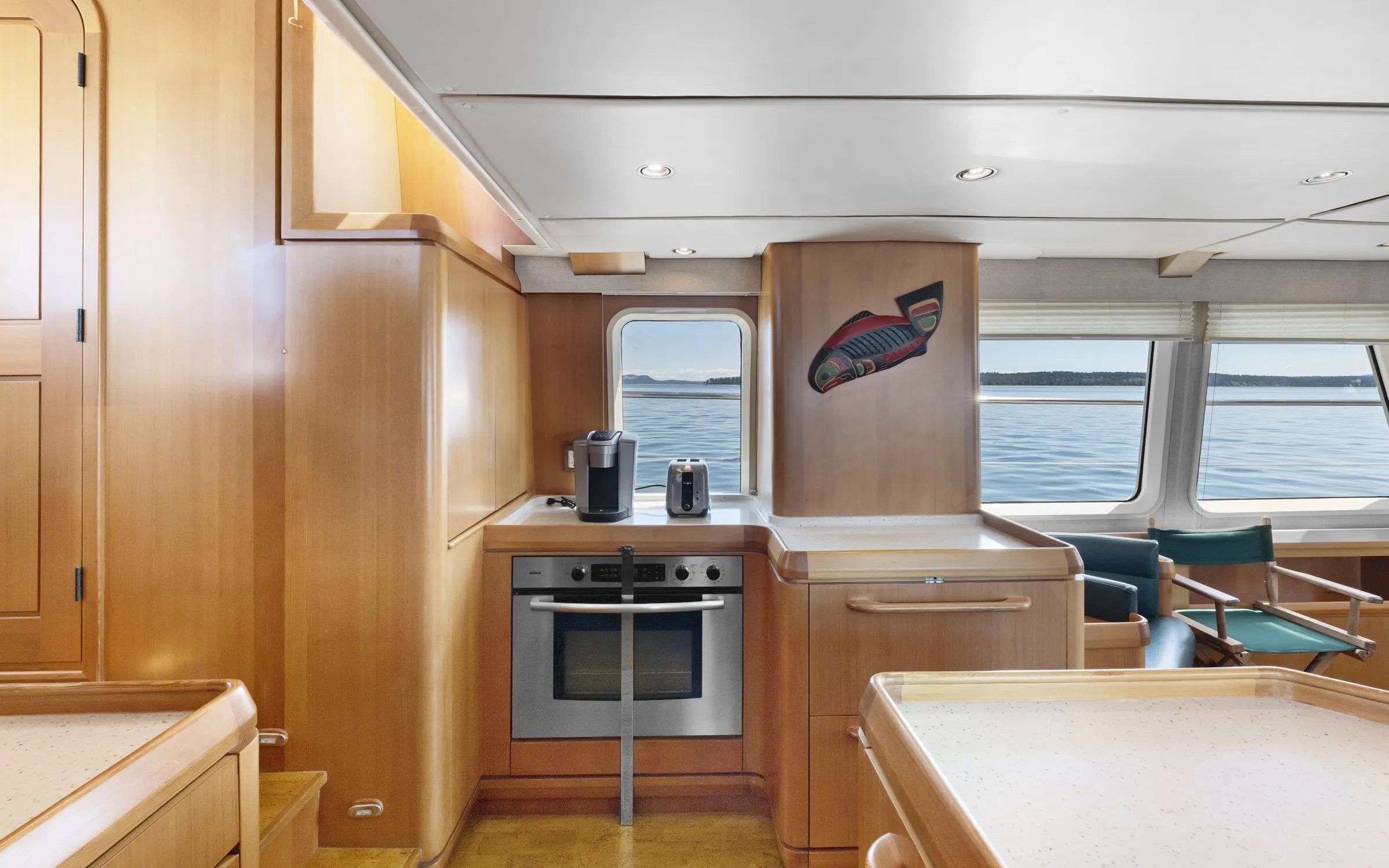

  • Oven/range — Bosch electric oven, Thermador gas 4 burner
  • Microwave/convection — Sharp R430CS
  • Potable water — 316 stainless tanks, Philbrook’s
  • Basins — Oliveri
  • Faucets — Methven, Aquabrass

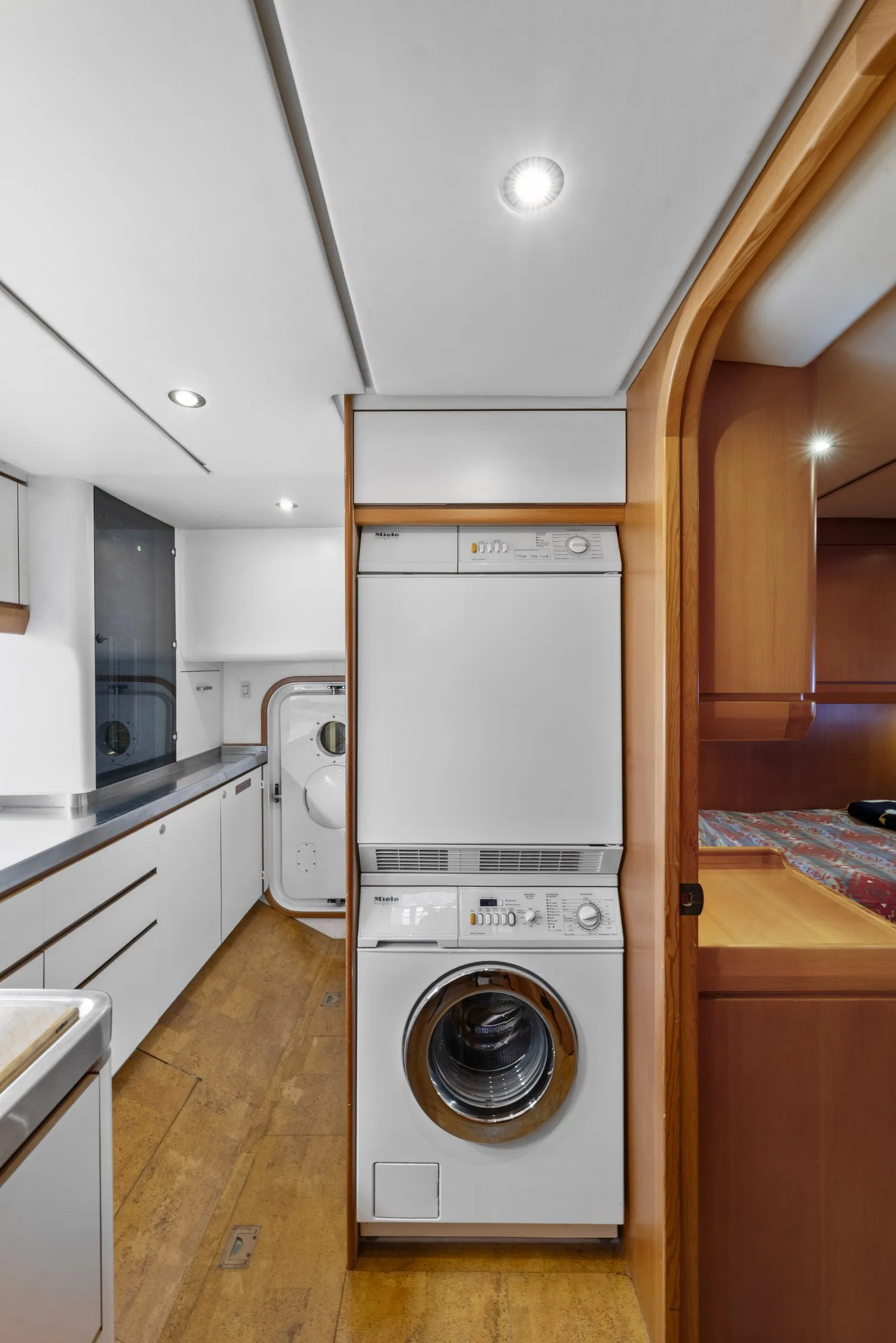

  • Washer/dryer — Miele full size stacking

Sidney, British Columbia

See her on the hard

She can be hauled on our own ways for survey, and refitted here by the people who built her.
